Head/thoraxbag sensor, component description - GF91.60-P-4102MCU

MODEL 451.3 /4

Location

The head/thoraxbag sensors are installed in the left and right B-pillars beneath the automatic belt retractors.

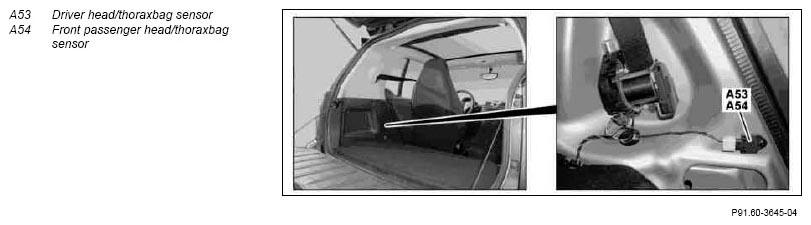

Fig 1: Locating Driver And Front Passenger Head/Thoraxbag Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Task

The head/thoraxbag sensors determine the acceleration value in the area of the B-pillar for the left or right side of the vehicle. The restraint systems control unit (N2/7) makes the decision whether to deploy the head/thoraxbags based on these values.

After a successful self-test the head/thoraxbag sensors continuously transmit a signal to the restraint systems control unit.
