Stop lamp actuation, function - GF82.10-P-3010MCU

MODEL 451.3 /4

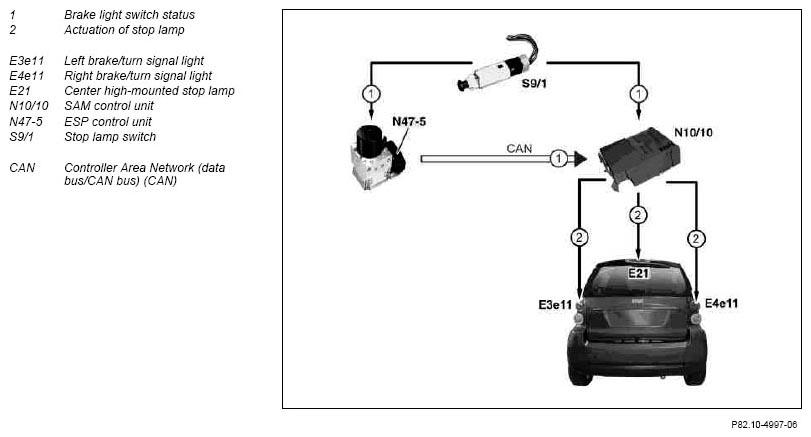

Fig 1: Stop Lamp Actuation Function Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function

When the service brake is operated, the request is directly relayed to the ESP control unit and the SAM control unit via the brake light switch.

The status of the brake light switch is also put onto the CAN by the ESP control unit.

The SAM control unit actuates the following components:

Component description for the SAM control unit	N10/10	GF54.21-P-4157MCU
ESP control unit, component description	N47-5	GF42.45-P-5118MCU
Brake light switch, component description	S9/1	GF42.10-P-2010MCC
