Standing light actuation, function - GF82.10-P-3000MCU

MODEL 451.3 /4

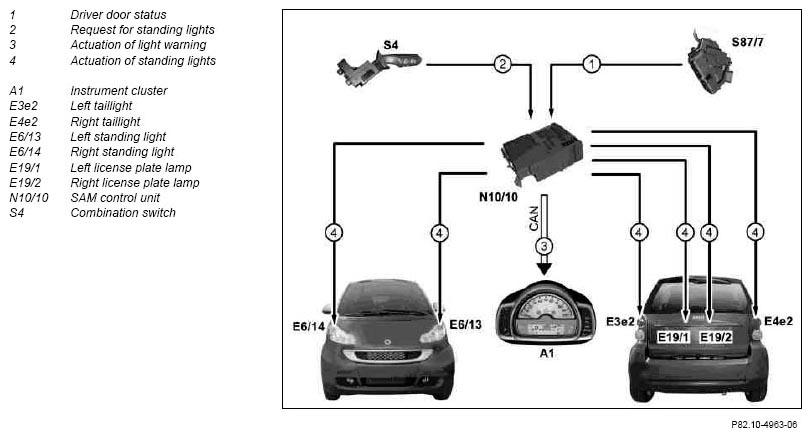

Fig 1: Standing Light Actuation Function Chart

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

standing lights actuation

Function requirements

• Combination switch in position 1 or
• Circ.15 off and combination switch in position 2

Function

The switch position of the combination switch is read in by the SAM control unit, which directly actuates the following components:

• Left and right standing light
• Left and right taillight
• Left and right license plate lamps

Lights on warning

If the standing light function is active, the driver door is open and circuit 15 is off, the instrument cluster emits an acoustic lamp warning.
