Lamp unit, component description - GF82.10-P-2017MCU

MODEL 451.3 /4

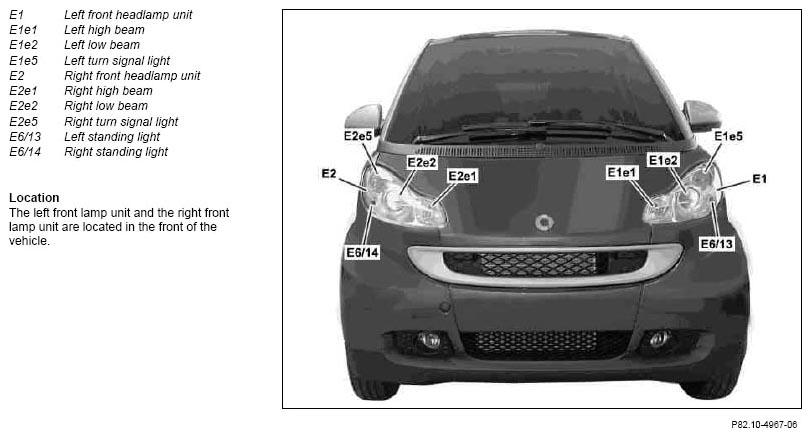

Fig 1: Identifying Lamp Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The left front lamp unit and the right front lamp unit are located in the front of the vehicle.

Design

The following components are installed in the left front lamp unit:

• Left high beam
• Left low beam
• Left turn signal light
• Left standing light
• Left headlamp range adjustment motor (E1m1)

The following components are installed in the right front lamp unit:

• Right high beam
• Right low beam
• Right turn signal light
• Right standing light
• Right headlamp range adjustment motor (E2m1)
