Install windshield - AR67.10-P-1503-01MCC

Shown on model 451.3

1. Center windshield (1) above body opening and position to coincide with strips of adhesive tape (arrows).

   Cup suction tool

   Helper required.

2. Position windshield (1) on body flange and press on until it makes contact with spacers. Then fix in place with suitable adhesive tape.

   The curing time is approx. 2 h measured from the time the windshield (1) is installed. The rated accident strength is achieved only after approx. 8 h.

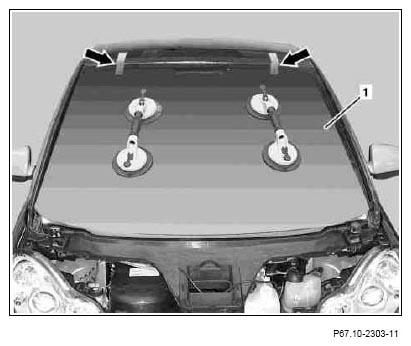

   Fig 1: Positioning Windshield On Body Flange

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
