Remove contacts from Micro Timer 3 coupling - AR00.19-P-0120-06A

Fig 1: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying MT 3 Blade (220 589 01 99 54)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Unfasten secondary release on version with sliding plate

1. Using a suitable tool, push sliding plate out of locked position.
   Fig 5: Pushing Sliding Plate Out Of Locked Position

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Unfasten secondary release on version with locking slider

2. Using a suitable tool, pry locking slider out of locked position.
   Fig 6: Prying Locking Slider Out Of Locked Position

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Remove female contact from coupling

3. Insert blade holder with clamping pliers and MT 3 blade from front side though openings at contact cavity of coupling.

   Do not damage webs between contact cavity and openings for release tool.

   This pushes together the springs at the female contact (1).

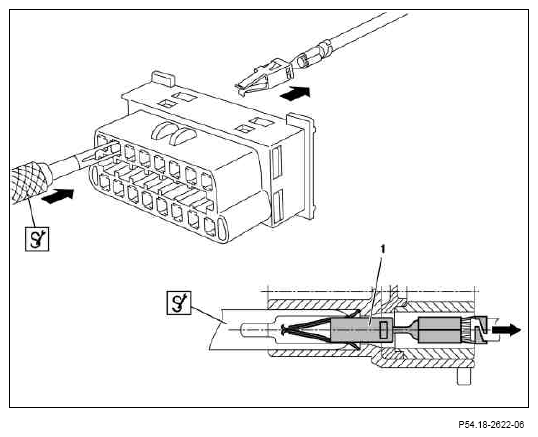

   Fig 7: Removing Female Contact From MT Coupling

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. A slight tug on the corresponding cable will remove the female contact from the coupling.
