Outside mirror adjustment switch, component description - GF88.79-P-4110MCC

MODEL 451.3/4 except CODE (V21) Electrically adjustable and heated outside mirrors (FFO)

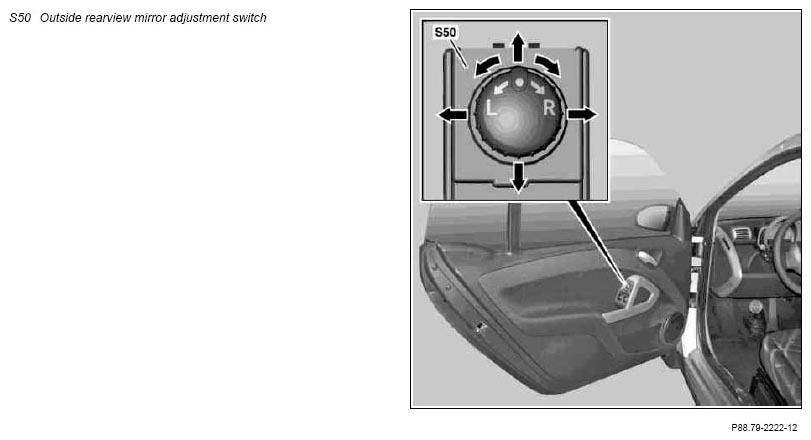

Fig 1: View Of Outside Rearview Mirror Adjustment Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The outside mirror adjustment switch is located in the driver door panel

Task

Reading in following requests:

• Preselecting outside mirror to be adjusted
• Adjusting mirror lens upward and downward
• Adjusting mirror lens toward inside and outside

Actuating following components:

• Mirror up/down adjustment motor (M21/1m1, M21/2m1)
• Mirror in/out adjustment motor (M21/1m2, M21/2m2)
