Installation [06/2015 - ]: Procedure

  1. INSTALL STEERING PAD SWITCH ASSEMBLY
    1. Engage the 4 claws, 2 pins and 2 guides to install the steering pad switch assembly to the steering wheel assembly.

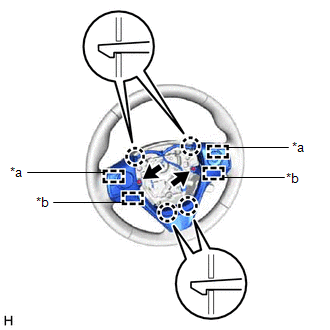

      GTY493021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    2. Install the 2 screws.

      Torque: 2.35 N*m (24 kgf*cm, 21 in.*lbf)

    3. Connect the steering pad switch connector to the spiral cable sub-assembly.
  2. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [06/2015 - ]
