Components [06/2015 - ]: Illustration

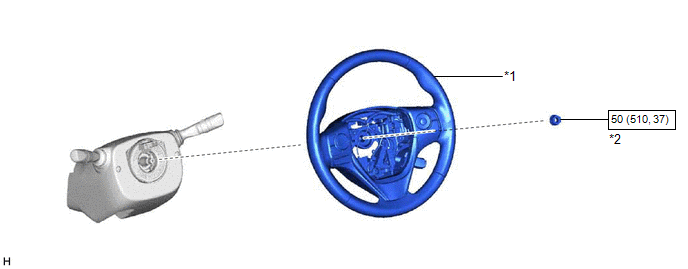

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 7)
GTY483124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING WHEEL ASSEMBLY *2 STEERING WHEEL ASSEMBLY SET NUT
N*m (kgf*cm, ft.*lbf): Specified torque - -

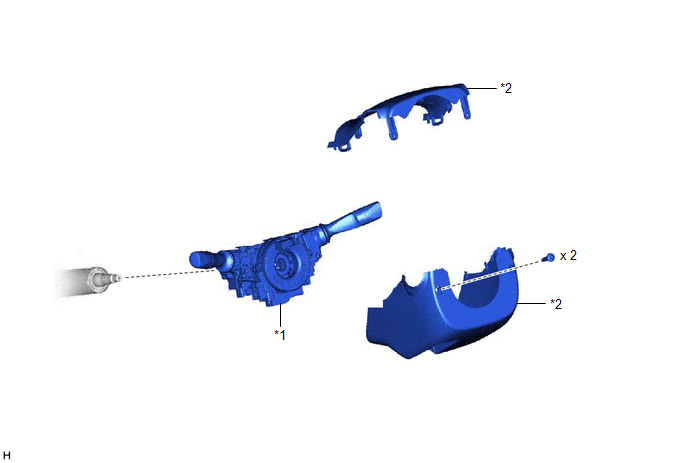

Fig 1: Steering Column Assembly Replacement Components (2 Of 7)
GTY482791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY *2 STEERING COLUMN COVER

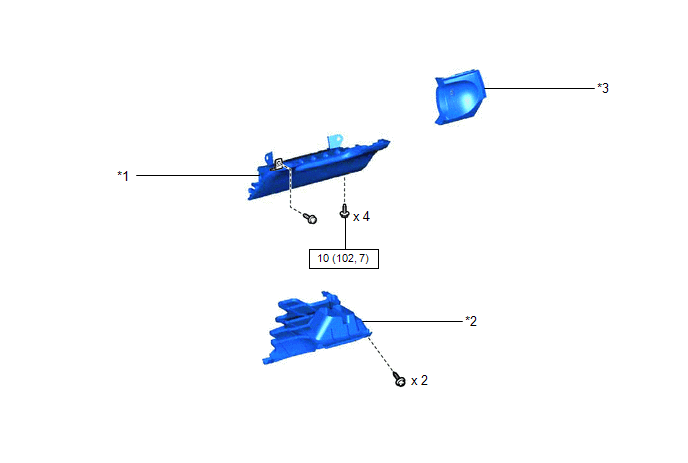

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 7)
GTY484236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY *2 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*3 NO. 1 SWITCH HOLE BASE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -


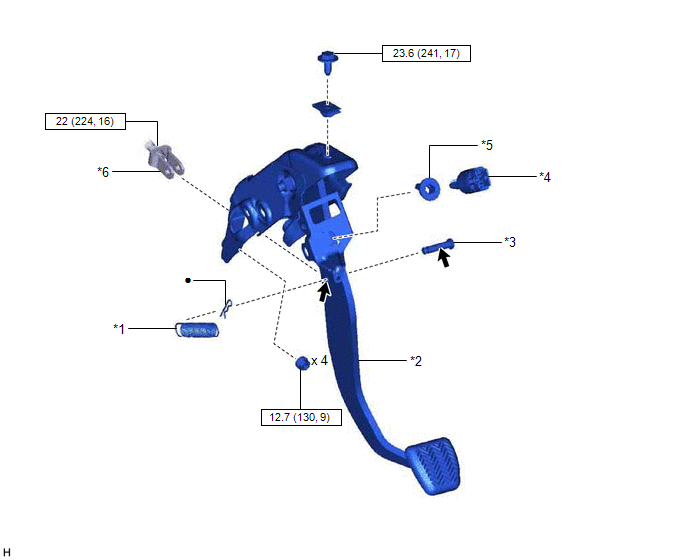

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (4 Of 7)
GTY492183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE PEDAL RETURN SPRING *2 BRAKE PEDAL SUPPORT ASSEMBLY
*3 PUSH ROD PIN *4 STOP LIGHT SWITCH ASSEMBLY
*5 STOP LIGHT SWITCH MOUNTING ADJUSTER *6 BRAKE MASTER CYLINDER PUSH ROD CLEVIS
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Lithium soap base glycol grease - -

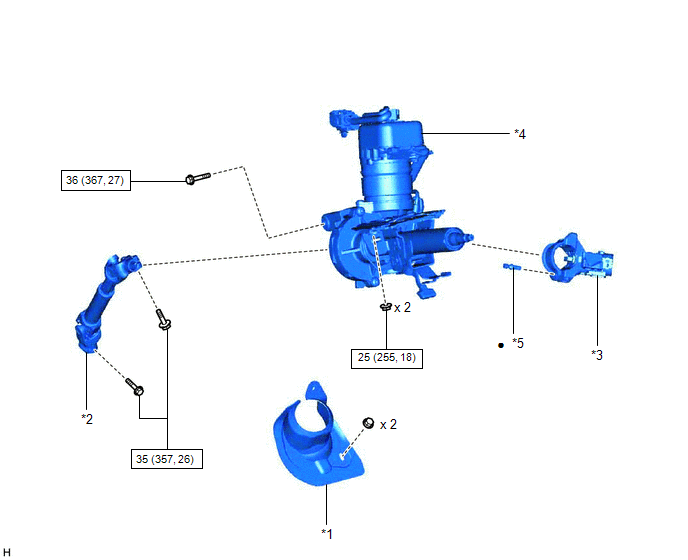

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (5 Of 7)
GTY492947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COLUMN HOLE COVER SILENCER SHEET *2 NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*3 UPPER STEERING COLUMN BRACKET WITH SWITCH ASSEMBLY *4 STEERING COLUMN ASSEMBLY
*5 STEERING LOCK SET BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

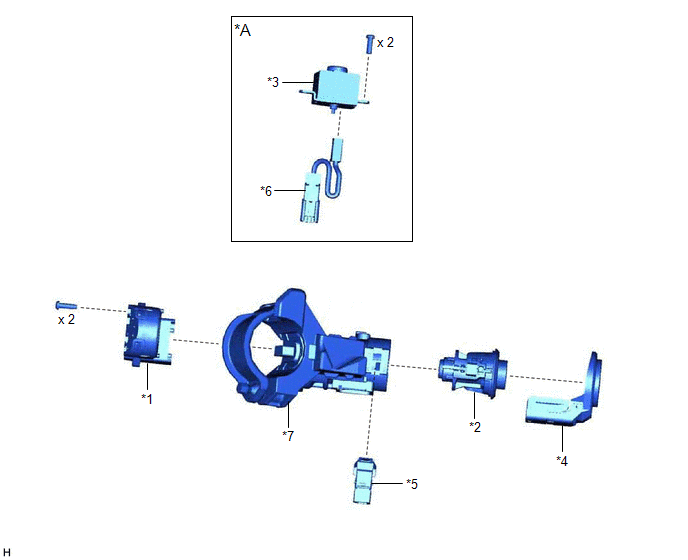

Fig 1: Steering Column Assembly Replacement Components (6 Of 7)
GTY491571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for CVT - -
*1 IGNITION OR STARTER SWITCH ASSEMBLY *2 IGNITION SWITCH LOCK CYLINDER ASSEMBLY
*3 KEY INTERLOCK SOLENOID *4 TRANSPONDER KEY COIL
*5 UN-LOCK WARNING SWITCH ASSEMBLY *6 SOLENOID WIRE
*7 UPPER STEERING COLUMN BRACKET ASSEMBLY - -

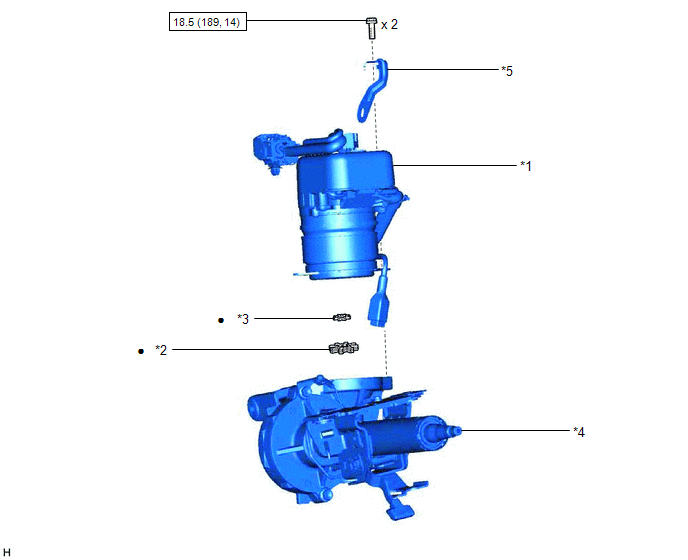

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (7 Of 7)
GTY490652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 POWER STEERING ECU WITH MOTOR ASSEMBLY *2 ELECTRIC POWER STEERING MOTOR SHAFT DAMPER
*3 ELECTRIC POWER STEERING MOTOR SHAFT SPACER *4 ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY
*5 BRACKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
