Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 15

  2. REMOVE VALVEMATIC SHAFT SENSOR (NO. 1 CRANK POSITION SENSOR)

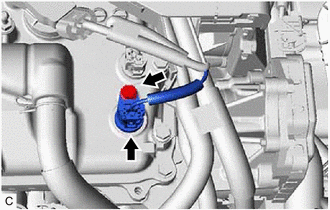

    1. Disconnect the VALVEMATIC shaft sensor (No. 1 crank position sensor) connector.
      GTY436627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VALVEMATIC shaft sensor (No. 1 crank position sensor) from the cylinder head cover sub-assembly.
      NOTE:

      If the VALVEMATIC shaft sensor (No. 1 crank position sensor) has been struck or dropped, replace it.
