Removal [06/2015 - ]: Procedure

  1. REMOVE ENGINE OIL TEMPERATURE SENSOR

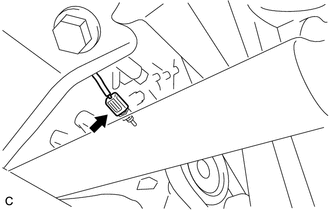

    1. Disconnect the engine oil temperature sensor connector.
      GTY487811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

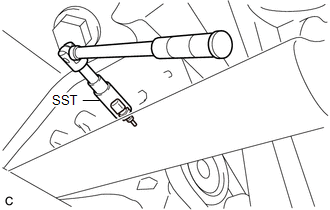

    2. Using SST, remove the engine oil temperature sensor from the timing chain cover sub-assembly.
      • SST: 09817-33191
      NOTE:

      If an engine oil temperature sensor has been struck or dropped, replace it.

      GTY484405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine oil temperature sensor.
