Components [06/2015 - ]: Illustration

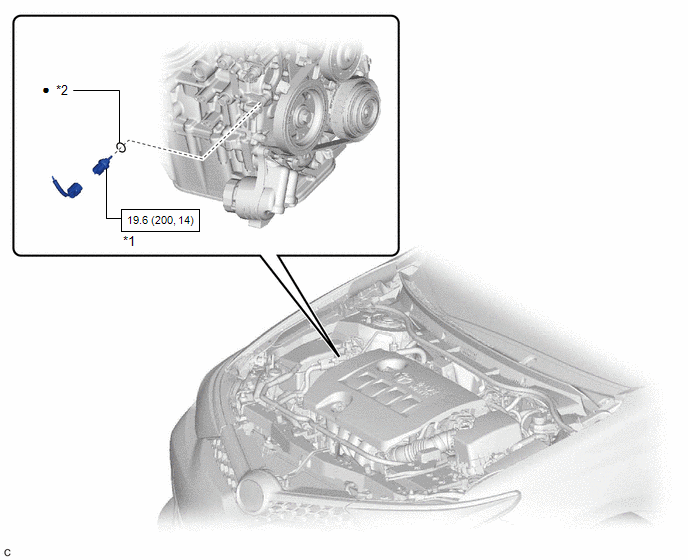

Fig 1: Engine Oil Temperature Sensor Replacement Components With Torque Specifications
GTY494804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE OIL TEMPERATURE SENSOR *2 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
