Removal [06/2015 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [06/2015 - ]

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  3. REMOVE FUEL INJECTOR ASSEMBLY

    Refer to REMOVAL [06/2015 - ]

  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

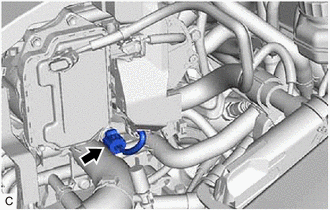

    1. Disconnect the engine coolant temperature sensor connector.
      GTY494126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the ground wire.

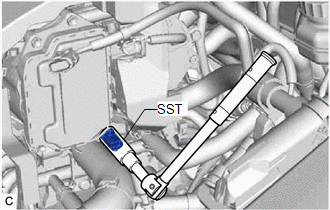

    3. Using SST, remove the engine coolant temperature sensor from the cylinder head sub-assembly.
      • SST: 09817-33191
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

      GTY487520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the engine coolant temperature sensor.
