Removal [06/2015 - ]: Procedure

PRECAUTION
NOTE:
- Perform the Vehicle Identification Number (VIN) registration when replacing the ECM.
  Refer to REGISTRATION [06/2015 - ]
- After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.
  Refer to PRECAUTION [06/2015 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [06/2015 - ]
REMOVE NO. 2 CYLINDER HEAD COVER
Refer to PROCEDURE - Step 82
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
See step 3
REMOVE AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 17

REMOVE ECM

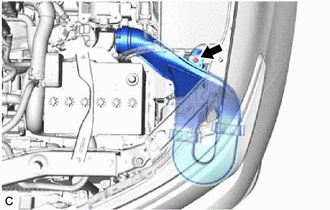

Remove the bolt and shift the inlet No. 1 air cleaner.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

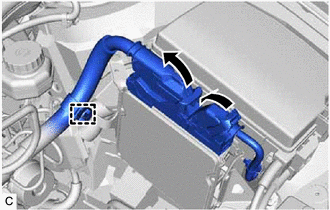

Raise the 2 levers while pushing the locks on the levers, and disconnect the 2 ECM connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After disconnecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

Disengage the wire harness clamp.

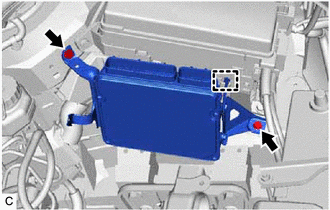

Remove the 2 bolts and disengage the guide to remove the ECM.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If the ECM has been struck or dropped, replace it.

REMOVE ECM BRACKET

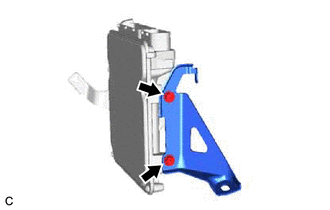

Remove the 2 screws and ECM bracket from the ECM.

REMOVE NO. 2 ECM BRACKET

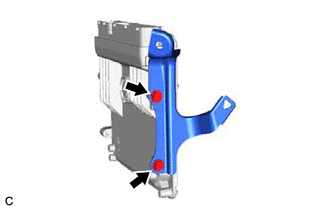

Remove the 2 screws and No. 2 ECM bracket from the ECM.
