Installation [06/2015 - ]: Procedure
- INSTALL NO. 2 ECM BRACKET
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Install the No. 2 ECM bracket to the ECM with the 2 screws.
- INSTALL ECM BRACKET
- Install the ECM bracket to the ECM with the 2 screws.
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Install the ECM bracket to the ECM with the 2 screws.
- INSTALL ECM
- Engage the guide and install the ECM with the 2 bolts.
Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)
NOTE:If the ECM has been struck or dropped, replace it.

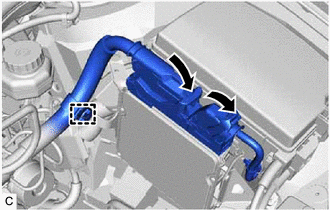

- Connect the 2 ECM connectors and lower the 2 levers.NOTE:
- When connecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.
- Be sure to securely connect the ECM connectors.
- Engage the wire harness clamp.
- Install the inlet No. 1 air cleaner with the bolt.
Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
- Engage the guide and install the ECM with the 2 bolts.
- INSTALL AIR CLEANER CASE SUB-ASSEMBLY
Refer to PROCEDURE - Step 55
- INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
See step 3
- INSTALL NO. 2 CYLINDER HEAD COVER
Refer to PROCEDURE - Step 82
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [06/2015 - ]
- PERFORM INITIALIZATION
Refer to INITIALIZATION [06/2015 - ]
