On-Vehicle Inspection [06/2015 - ]: Procedure

  1. INSPECT INTAKE SYSTEM

    HINT:

    Perform Inspection After Repair after repairing vacuum leaks in the intake system.

    Refer to INITIALIZATION [06/2015 - ]

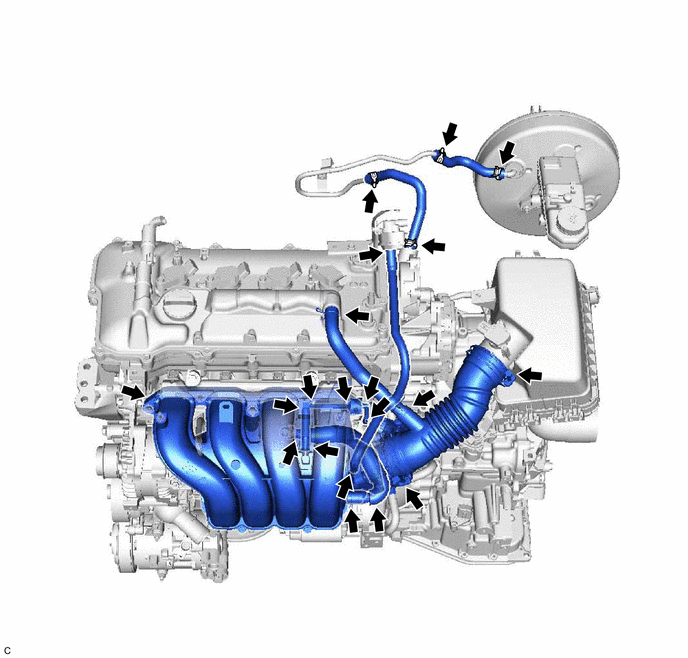

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY493062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION
    1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.

      Refer to INITIALIZATION [06/2015 - ]
