Installation [06/2015 - ]: Procedure

INSTALL GENERATOR ASSEMBLY

Install the wire harness clamp bracket to the generator assembly with the bolt.
Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

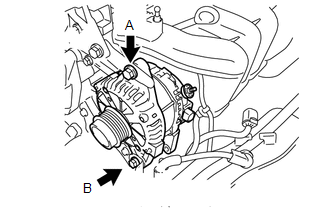

Install the generator assembly with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Bolt (A)

Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

Bolt (B)

Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

Engage the wire harness clamp to the generator assembly.
Connect the generator assembly connector.
Connect the wire harness to terminal B with the nut.
Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
Install the terminal cap.

INSTALL V-RIBBED BELT
Refer to INSTALLATION [06/2015 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [06/2015 - ]
INSTALL NO. 2 CYLINDER HEAD COVER
Refer to PROCEDURE - Step 82
