Disassembly [06/2015 - ]: Procedure
- REMOVE GENERATOR PULLEY CAP
- REMOVE GENERATOR PULLEY WITH CLUTCH
- Secure the generator drive end frame in a vise between aluminum plates.

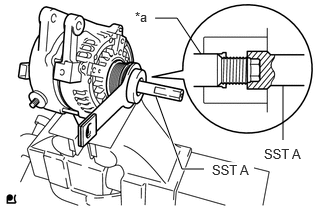

- Install SST (A) to SST (B) as shown in the illustration.
- SST: 09820-63021
- Fit the rotor shaft end into SST (A).

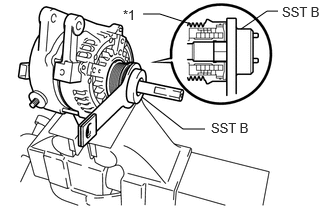

*a Rotor Shaft - Fit SST (B) to the generator pulley with clutch.

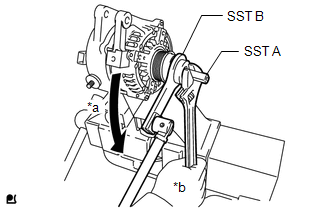

*1 Generator Pulley with Clutch - Loosen the generator pulley with clutch by turning SST (B) as shown in the illustration.
*a Turn *b Hold NOTE:- Check that the generator drive end frame is secured in the vise tightly.
- Hold SST (A) tightly during the operation.
- Remove SST (A) and (B) from the generator pulley with clutch.
- Remove the generator pulley with clutch from the rotor shaft.
- Remove the generator drive end frame from the vise.
- REMOVE GENERATOR REAR END COVER

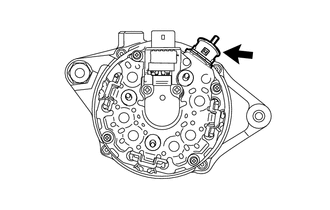

- REMOVE GENERATOR TERMINAL INSULATOR

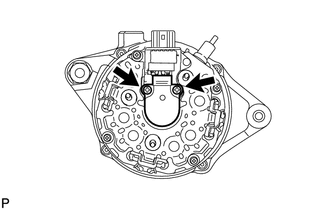

- REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
- REMOVE GENERATOR COIL ASSEMBLY

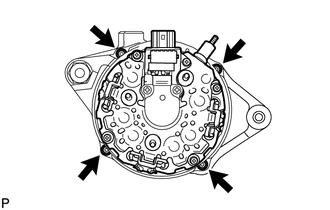

- Remove the 4 bolts.

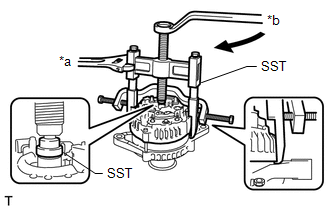

- Using SST, remove the generator coil assembly.
- SST: 09950-40011
- 09951-04020
- 09952-04010
- 09953-04020
- 09954-04010
- 09955-04071
- 09957-04010
- 09958-04011
*a Hold *b Turn - SST: 09950-40011

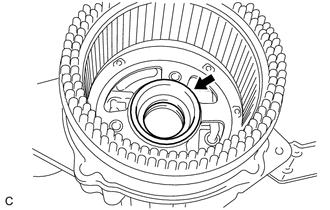

- Remove the bearing cover packing.NOTE:
If the bearing cover packing breaks, remove the broken pieces completely.
HINT:
The bearing cover packing may be installed on the generator rotor assembly.
- Remove the 4 bolts.
- REMOVE GENERATOR ROTOR ASSEMBLY
- INSPECT GENERATOR DRIVE END FRAME BEARING
See step 4

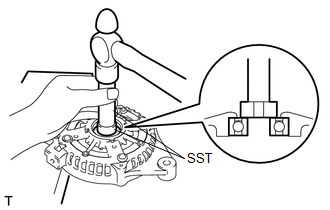

- REMOVE GENERATOR DRIVE END FRAME BEARING
