Installation [06/2015 - ]: Procedure

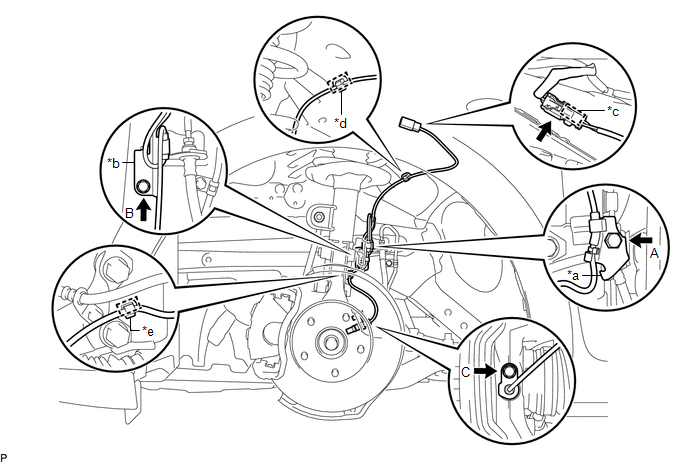

1. Install the front speed sensor to the steering knuckle with the bolt (C).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	No. 1 Sensor Clamp	*b	No. 2 Sensor Clamp
   *c	Clamp (A)	*d	Clamp (B)
   *e	Clamp (C)	-	-

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
2. Install the clamp (C) to the front shock absorber assembly.
3. Install the No. 1 sensor clamp and front flexible hose to the front shock absorber assembly with the bolt (A).

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   NOTE:

   • Do not twist the wire harness for the front speed sensor when installing it.
   • The bolt (A) tightens the front flexible hose bracket and No. 1 sensor clamp together. Make sure that the No. 1 sensor clamp is positioned over the front flexible hose bracket.
4. Install the No. 2 sensor clamp to the vehicle body with the bolt (B).

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Do not twist the wire harness for the front speed sensor when installing it.

5. Install the clamp (B) to the vehicle body.
6. Connect the connector to the front speed sensor.
7. Install the clamp (A) to the vehicle body.

HINT:

Use the same procedure for the RH side and LH side.

Refer to PROCEDURE - Step 2

Refer to TEST MODE PROCEDURE [06/2015 - ]
