Components Location [06/2015 - ]: Illustration

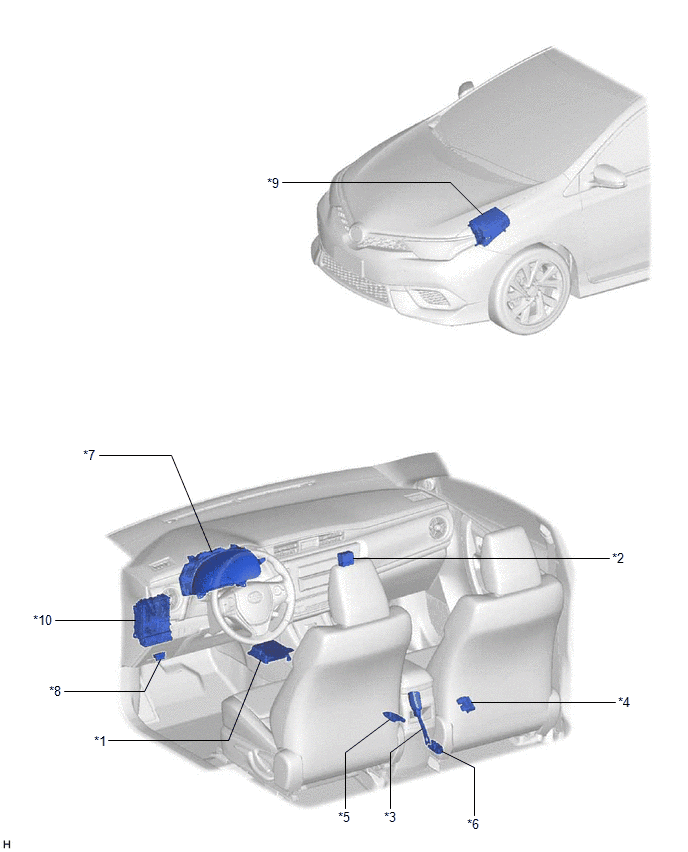

Fig 1: Identifying Occupant Classification System Components Location
GTY483591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIRBAG SENSOR ASSEMBLY *2 - PASSENGER AIRBAG ON/OFF INDICATOR
TELLTALE LIGHT ASSEMBLY
*3 - PASSENGER SIDE BUCKLE SWITCH
FRONT SEAT INNER BELT ASSEMBLY RH
*4 OCCUPANT DETECTION ECU
*5 FRONT OCCUPANT CLASSIFICATION SENSOR LH *6 REAR OCCUPANT CLASSIFICATION SENSOR LH
*7 COMBINATION METER ASSEMBLY
- SRS WARNING LIGHT
*8 DLC3
*9 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- ODS FUSE
*10 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- A/BAG FUSE
- ECU-IG NO. 4 FUSE
