Components [06/2015 - ]: Illustration

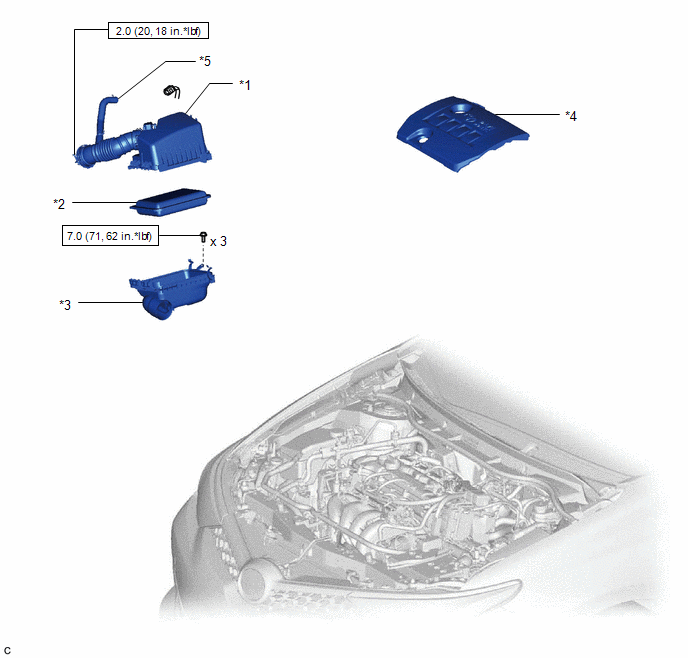

Fig 1: ECM Replacement Components With Torque Specifications (1 Of 2)
GTY483102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER CAP WITH AIR CLEANER HOSE *2 AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*3 AIR CLEANER CASE SUB-ASSEMBLY *4 NO. 2 CYLINDER HEAD COVER
*5 NO. 2 VENTILATION HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

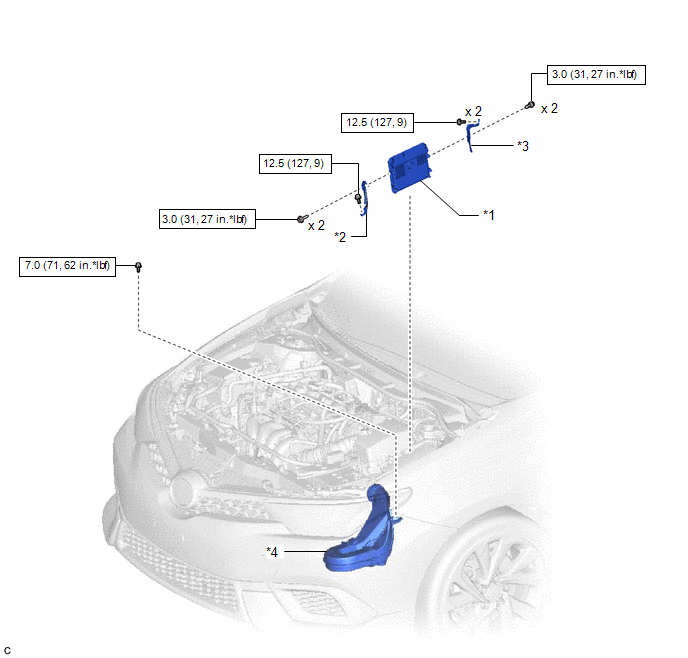

Fig 1: ECM Replacement Components With Torque Specifications (2 Of 2)
GTY488471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 ECM BRACKET
*3 NO. 2 ECM BRACKET *4 INLET NO. 1 AIR CLEANER
N*m (kgf*cm, ft.*lbf): Specified torque - -
