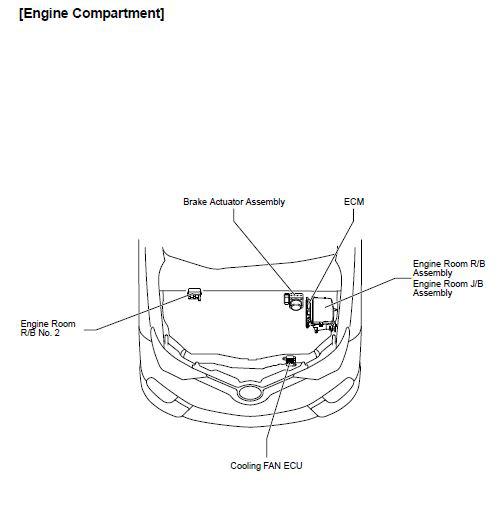

Engine Compartment Relay Location Engine Room R/B Assembly and Engine Room J/B Assembly: Notes
For additional information, refer to Figure.

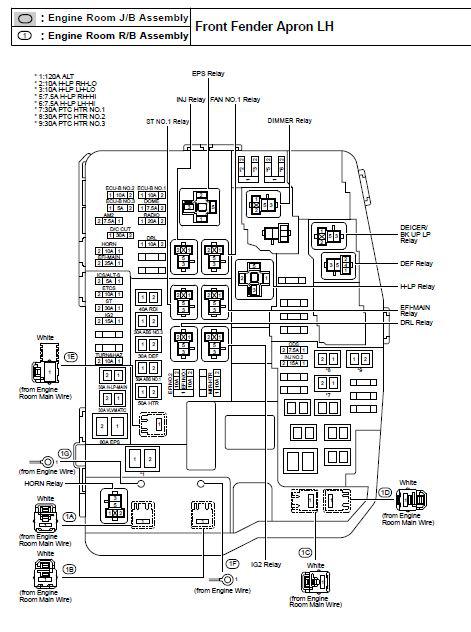

Fig 1: Engine Compartment Relay Location Engine Room R/B Assembly and Engine Room J/B Assembly Identification
ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ST NO. 1 Realy |
| EPS Relay |
| INJ Relay |
| Fan NO. 1 Relay |
| Dimmer Relay |
| DEICER BK UP LP Relay |
| DEF Relay |
| H-LP Relay |
| EFI-MAIN Relay |
| DRL Relay |
| Horn Relay |
Engine Room R/B And J/B Fuse & Relay Identification Legend
| Fuse | System | |
| 5A | ECU-B NO. 3 | EPS |
| 5A | ICS/ALT-S | Charging |
| 7.5A | AM2 | Cruise Control CVT and Shift Indicator Engine Control Starting |
| 7.5A | DOME | Interior Light |
| 7.5A | H-LP LH-HI | Headlight |
| 7.5A | H-LP RH-HI | Headlight |
| 7.5A | ODS | Seat Belt Warning SRS |
| 10A | DRL | Headlight |
| 10A | ECU-B NO. 1 | ABS Automatic Light Control Back Door Opener Brake Assist Clock Combination Meter Door Lock Control Headlight Hill-Start Assist Control Illumination Interior Light Light Auto Turn Off System Light Reminder Power Window Taillight Tire Pressure Warning System TRAC VSC Wireless Door Lock Control |
| 10A | ECU-B NO. 2 | ABS Air Conditioning Audio System Back Door Opener Brake Assist Charging Combination Meter Cruise Control CVT and Shift Indicator Door Lock Control Engine Control EPS Hill-Start Assist Control Illumination Immobiliser System Light Reminder Rear View Monitor System Seat Belt Warning SRS Taillight Tire Pressure Warning System TRAC Turn Signal and Hazard Warning Light VSC Wireless Door Lock Control |
| 10A | EFI NO. 1 | Cruise Control CVT and Shift Indicator Engine Control |
| 10A | EFI NO. 2 | Cruise Control CVT and Shift Indicator Engine Control |
| 10A | ETCS | Cruise Control CVT and Shift Indicator Engine Control |
| 10A | H-LP LH-LO | Headlight |
| 10A | H-LP RH-LO | Headlight |
| 10A | HORN | Horn |
| 10A | MIR-HTR | Cruise Control CVT and Shift Indicator Engine Control Mirror Heater Rear Window Defogger |
| 10A | TURN&HAZ | Back Door Opener Combination Meter Door Lock Control Turn Signal and Hazard Warning Light Wireless Door Lock Control |
| 15A | IG2 | Power Source |
| 15A | INJ NO. 2 | Combination Meter Cruise Control CVT and Shift Indicator Engine Control Ignition |
| 20A | RADIO | Audio System Rear View Monitor System |
| 25A | EFI-MAIN | Cruise Control CVT and Shift Indicator Engine Control |
| 30A | ABS NO. 3 | ABS Brake Assist Hill-Start Assist Control TRAC VSC |
| 30A | D/C CUT | Power Source |
| 30A | DEF | Cruise Control CVT and Shift Indicator Engine Control Mirror Heater Rear Window Defogger |
| 30A | H-LP MAIN | Air Conditioning Automatic Light Control Headlight Light Auto Turn Off System |
| 30A | PTC HTR NO. 1 | Air Conditioning |
| 30A | PTC HTR NO. 2 | Air Conditioning |
| 30A | PTC HTR NO. 3 | Air Conditioning |
| 30A | ST | Starting |
| 30A | VLVMATIC | Cruise Control CVT and Shift Indicator Engine Control |
| 40A | RDI | Cooling Fan |
| 50A | ABS NO. 1 | ABS Brake Assist Hill-Start Assist Control TRAC VSC |
| 50A | HTR | Air Conditioning |
| 80A | EPS | EPS |
| 120A | ALT | Automatic Light Control Charging Cruise Control CVT and Shift Indicator Engine Control Illumination Light Auto Turn Off System Light Reminder Power Window Taillight |
