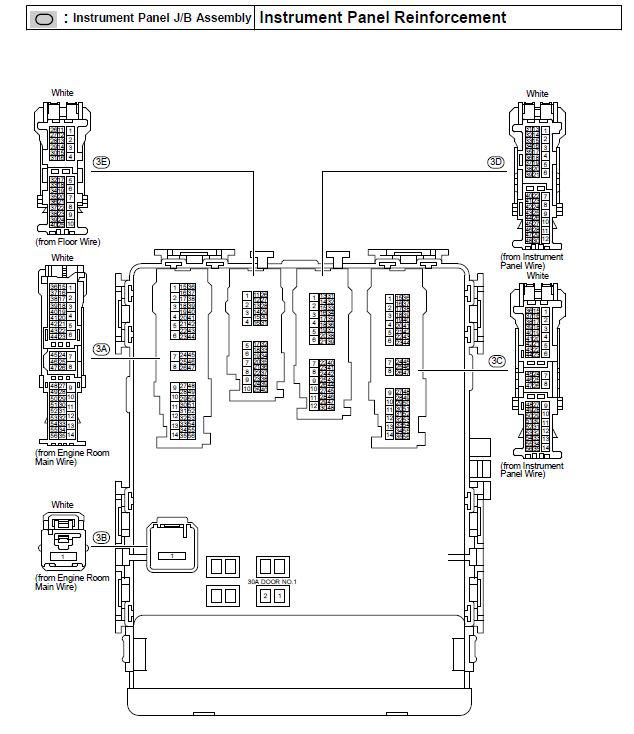

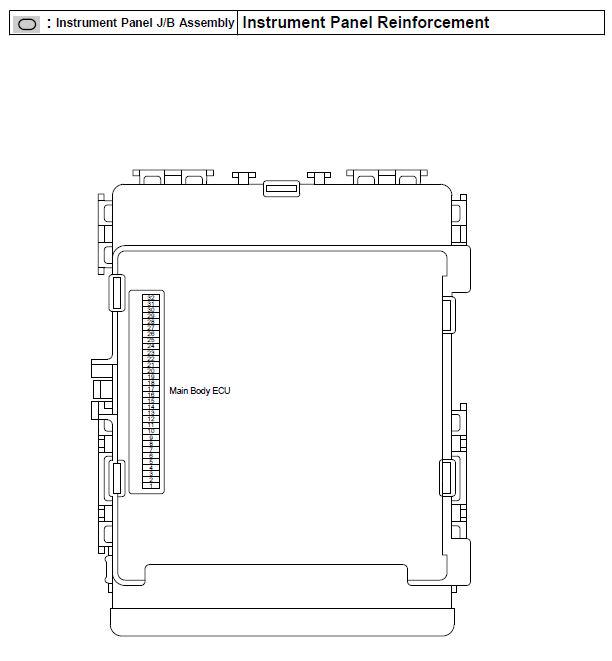

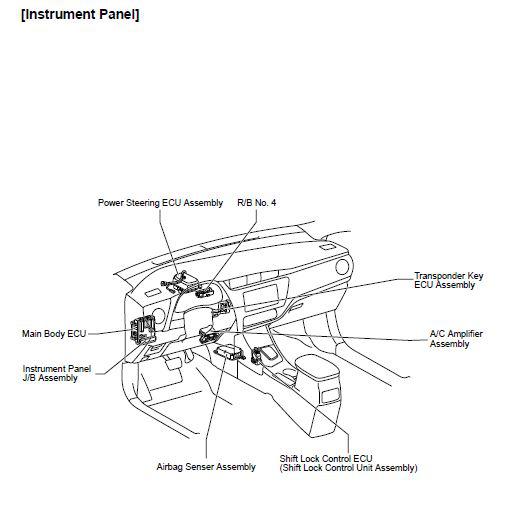

Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement
For additional information, refer to Figure.

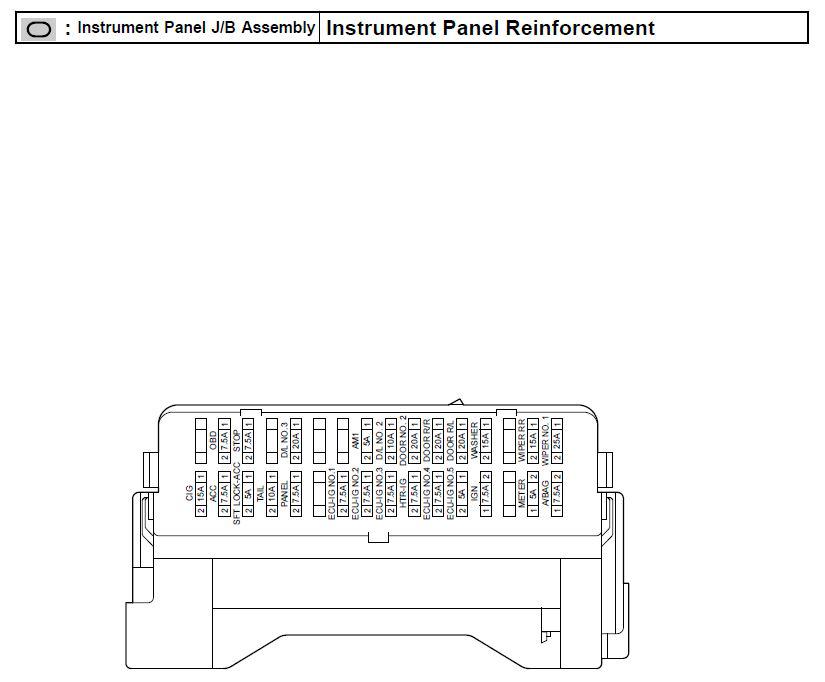

Instrument Panel J/B Fuse Identification Legend
| Fuse | System | |
| 5A | AM1 | Power Source |
| 5A | ECU-IG NO. 5 | EPS |
| 5A | METER | ABS Air Conditioning Audio System Back Door Opener Brake Assist Charging Combination Meter Cruise Control CVT and Shift Indicator Door Lock Control Engine Control EPS Hill-Start Assist Control Illumination Light Reminder Rear View Monitor System Seat Belt Warning SRS Taillight Tire Pressure Warning System TRAC Turn Signal and Hazard Warning Light VSC Wireless Door Lock Control |
| 5A | SFT LOCK-ACC | Shift Lock |
| 7.5A | A/BAG | Seat Belt Warning SRS |
| 7.5A | ACC | ABS Audio System Automatic Light Control Back Door Opener Back-Up Light Brake Assist Clock Combination Meter Cruise Control CVT and Shift Indicator Door Lock Control Engine Control Headlight Hill-Start Assist Control Illumination Interior Light Light Auto Turn Off System Light Reminder Power Window Rear View Monitor System Remote Control Mirror Taillight Tire Pressure Warning System TRAC VSC Wireless Door Lock Control |
| 7.5A | ECU-IG NO. 1 | ABS Brake Assist Charging Combination Meter Cruise Control CVT and Shift Indicator Engine Control Hill-Start Assist Control Tire Pressure Warning System TRAC VSCWireless Door Lock Control |
| 7.5A | ECU-IG NO. 2 | ABS Audio System Back-Up Light Brake Assist Combination Meter Cruise Control CVT and Shift Indicator Engine Control Hill-Start Assist Control Rear View Monitor System TRAC VSC |
| 7.5A | ECU-IG NO. 3 | Cooling Fan Cruise Control CVT and Shift Indicator Engine Control Shift Lock |
| 7.5A | ECU-IG NO. 4 | ABS Automatic Light Control Back Door Opener Brake Assist Combination Meter Door Lock Control Headlight Hill-Start Assist Control Illumination Interior Light Light Auto Turn Off System Light Reminder Power Window SRS Taillight Tire Pressure Warning System TRAC VSC Wireless Door Lock Control |
| 7.5A | HTR-IG | Air Conditioning Cruise Control CVT and Shift Indicator Engine Control Mirror Heater Rear Window Defogger |
| 7.5A | IGN | Cruise Control CVT and Shift Indicator Engine Control Immobiliser System |
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | PANEL | Illumination Taillight |
| 7.5A | STOP | ABS Brake Assist Cruise Control CVT and Shift Indicator Engine Control Hill-Start Assist Control Shift Lock Stop Light TRAC VSC |
| 10A | D/L NO. 2 | Back Door Opener Door Lock Control Wireless Door Lock Control |
| 10A | TAIL | Cruise Control CVT and Shift Indicator Engine Control Illumination Taillight |
| 15A | CIG | Cigarette Lighter |
| 15A | WASHER | Front Wiper and Washer Rear Wiper and Washer |
| 15A | WIPER RR | Rear Wiper and Washer |
| 20A | D/L NO. 3 | Back Door Opener Door Lock Control Wireless Door Lock Control |
| 20A | DOOR NO. 2 | Power Window |
| 20A | DOOR R/L | Power Window |
| 20A | DOOR R/R | Power Window |
| 25A | WIPER NO. 1 | Front Wiper and Washer |
| 30A | DOOR NO. 1 | Power Window |
