Removal [06/2015 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3

  2. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. REMOVE SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY)

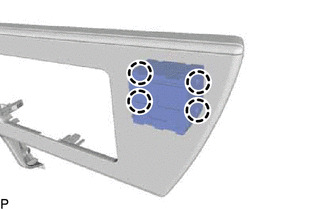

    GTY482892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 4 claws and remove the security indicator light (telltale light assembly).
