Installation [06/2015 - ]: Procedure

  1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Pass the transmission control cable assembly into the vehicle and install the transmission control cable assembly to the vehicle body with the 2 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Connect the transmission control cable assembly to the rear engine mounting insulator with the bolt.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

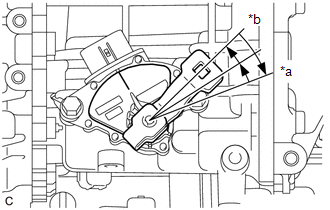

    4. Turn the control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.
      GTY491978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a P Position
      *b N Position
    5. Connect the transmission control cable assembly to the control shaft lever with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

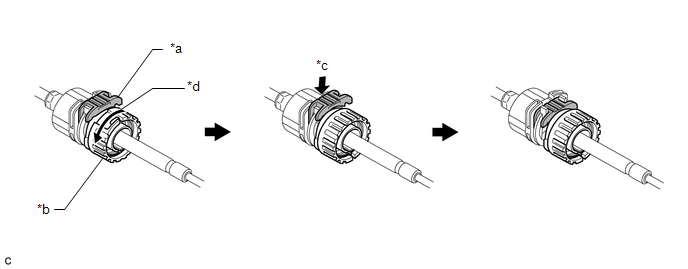

    6. Turn the nut of the transmission control cable assembly approximately 180° counterclockwise. While holding the nut in place, push in the stopper until it clicks twice.
      GTY495268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper *b Nut
      *c Push in *d Turn approximately 180°

      HINT:

      If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.

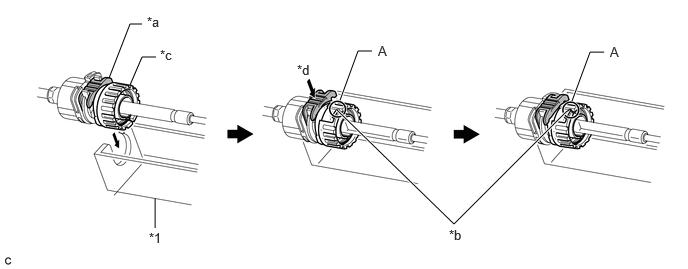

    7. Connect the transmission control cable assembly to the transmission floor shift assembly. Check that the spring is positioned at (A) and push in the stopper.
      GTY495075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Floor Shift Assembly - -
      *a Stopper *b Spring
      *c Nut *d Push in
      NOTE:
      • If the stopper cannot be pushed in, slightly turn the nut clockwise and then push in the stopper again.
      • Make sure that the transmission control cable assembly is securely locked.

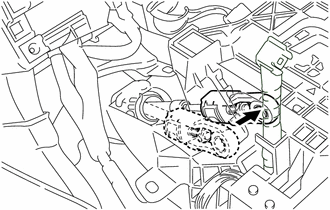

    8. Connect the transmission control cable assembly to the transmission floor shift assembly.
      NOTE:
      • The shift lever should be in N.
      • Connect the transmission control cable assembly all the way to the base of the pin.
      GTY494832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADJUST SHIFT LEVER POSITION

    See step  3

  3. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Install the front No. 1 floor heat insulator to the vehicle body with the 3 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  4. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

    Refer to PROCEDURE - Step 4

  5. INSTALL FRONT CENTER FLOOR BRACE

    Refer to PROCEDURE - Step 3

  6. INSTALL BATTERY CARRIER ASSEMBLY

    Refer to PROCEDURE - Step 53

  7. INSTALL BATTERY

    Refer to PROCEDURE - Step 54

  8. INSTALL AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 55

  9. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  10. INSTALL NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 82

  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [06/2015 - ]

  12. INSTALL REAR CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [06/2015 - ]

  13. INSPECT SHIFT LEVER POSITION

    See step  2

  14. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 6
