Components [06/2015 - ]: Illustration

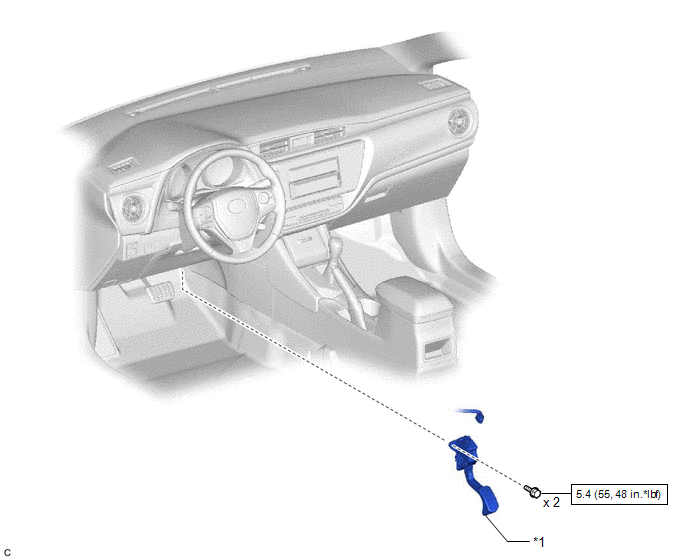

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
GTY488663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ACCELERATOR PEDAL SENSOR ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
