Removal [06/2015 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [06/2015 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [06/2015 - ]

  3. REMOVE FRONT FENDER LINER

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to REMOVAL [06/2015 - ]

  4. REMOVE FRONT SPEED SENSOR

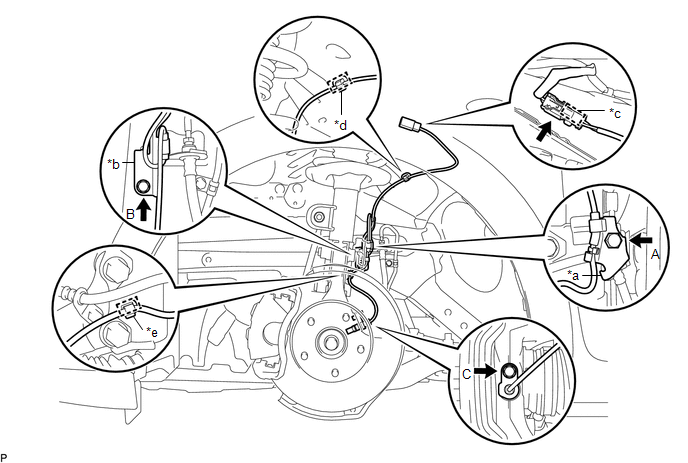

    1. Disengage the clamp (A) from the vehicle body.
      GTY483593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 1 Sensor Clamp *b No. 2 Sensor Clamp
      *c Clamp (A) *d Clamp (B)
      *e Clamp (C) - -
    2. Disconnect the connector from the front speed sensor.
    3. Disengage the clamp (B) from the vehicle body.
    4. Remove the bolt (B) and separate the No. 2 sensor clamp from the vehicle body.
    5. Remove the bolt (A) and separate the No. 1 sensor clamp from the front shock absorber assembly.
    6. Disengage the clamp (C) from the front shock absorber assembly.
    7. Remove the bolt (C) and front speed sensor from the steering knuckle.
      NOTE:
      • Prevent foreign matter from attaching to the front speed sensor tip.
      • Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
