Removal [07/2015 - ]: Procedure

REMOVE POWER WINDOW MASTER SWITCH

Disconnect the negative battery cable.
Refer to PROCEDURE - Step 1

To prevent scratches or damage, affix protective tape to the position shown in the figure of the front door trim.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front Door Trim
*b	Power Window Main Switch
*c	Protective Tape

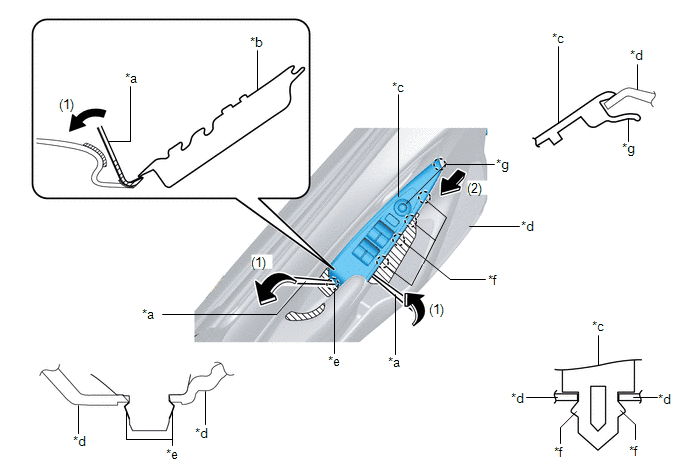

Insert a remover tool shown in the figure and remove the tab A in the direction of arrow (1).

Insert a remover tool shown in the figure and remove the tab A in the direction of arrow (1).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Remover Tool	*b	Power Window Main Switch
*c	Power Window Main Switch Cover	*d	Front Door Trim
*e	Tab A	*f	Tab B
*g	Tab C	-	-

Insert a remover tool shown in the figure and remove the tabs B in the direction of arrow (1).
Slide the power window main switch in the direction of the arrow (2) shown in the figure and remove the tab C.

Disconnect the connector.

Connector

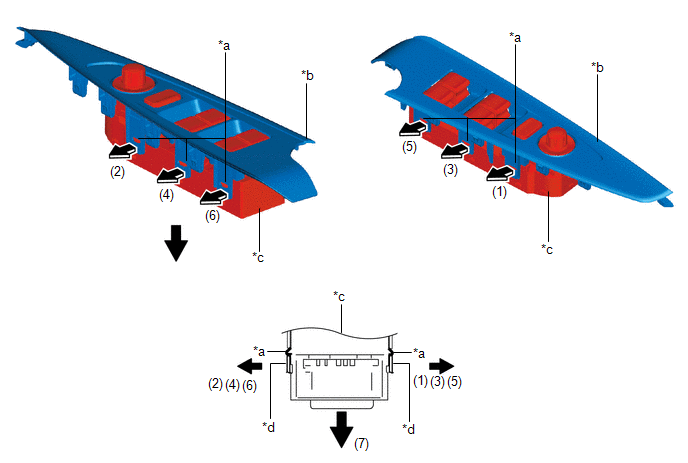

Pull the power window main switch cover end in the order of (1), (2), (3), (4), (5), and (6) shown in the figure and detach the tabs from the power window main switch cover.

*a	Tab	*b	Power Window Main Switch Cover
*c	Power Window Main Switch	*d	Edge of Power Window Main Switch Cover

Remove the power window main switch in the direction of the arrow (7) shown in the figure.
