Installation [07/2015 - ]: Procedure
- INSTALL OIL CONTROL VALVE WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

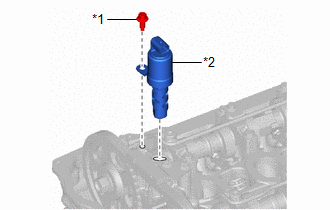

- Install the OCV.
*1 OCV installation bolt *2 OCV - Install the OCV installation bolt.
Torque: 9.5 N*m (97 kgf*cm, 7 ft.*lbf)
- Install the cylinder head cover.
Refer to INSTALLATION [07/2015 - ]
- Install the ignition coils.
Refer to INSTALLATION [07/2015 - ]
- Install the plug hole plate.
Refer to INSTALLATION [07/2015 - ]
- Connect the negative battery cable.
Refer to INSTALLATION [07/2015 - ]
