Removal [07/2015 - ]: Procedure

  1. REMOVE KNOCK SENSOR
    1. Disconnect the negative battery cable.

      Refer to REMOVAL [07/2015 - ]

    2. Remove the plug hole plate.

      Refer to REMOVAL [07/2015 - ]

    3. Remove the intake manifold.

      Refer to REMOVAL [07/2015 - ]

    4. Disconnect the KS connector.
    5. Remove the bolt.

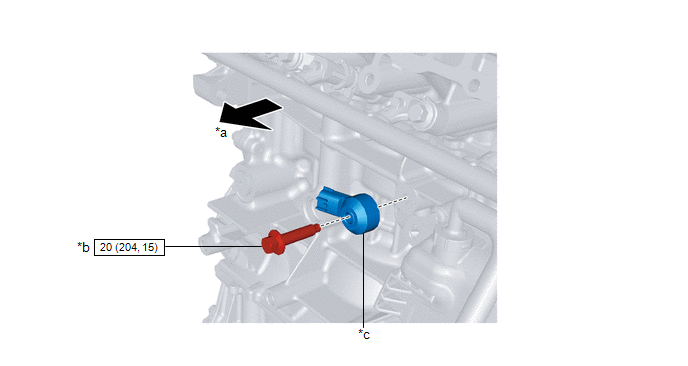

      GTY485292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Vehicle Front *b Bolt
      *c KS - -
      N*m (kgf*cm, ft.*lbf): Specified torque - -
    6. Remove the KS.

      See step  1
