Installation [07/2015 - ]: Procedure
- EVAPORATIVE HOSE INSTALLATION NOTE
- Install the evaporative hose as shown in the figure.
*a Intake Manifold *b Evaporative hose must be bottomed or 1 mm (0.04 in.) MAX. from bottom. *c Clip Must be Installed on Paint Mark *d Install Hose to Locate Center of Paint Mark in This Area *e Allowable Angle for Installed Hose Clip Tab Center *f 20° *g 90° *h Top
- Install the evaporative hose as shown in the figure.
- VACUUM HOSE INSTALLATION NOTE
- Install the vacuum hose as shown in the figure.

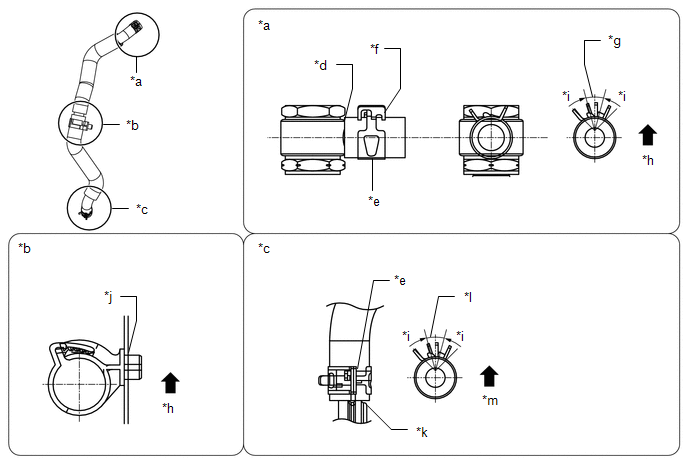

*a Vacuum Pump Side *b Clip Part *c Intake Manifold Side *d Insert Hose Until It Comes into Contact With Vacuum Pump *e After Insertion With Hose, Lock of Clip Removed *f Hose Clip *g Marking Located in This Area *h Top *i 15° *j Insert Clip into Bracket Until Locked *k Insert Hose Until It Comes into Contact With Intake Manifold *l Marking Located This Area *m Vehicle Front - -
- Install the vacuum hose as shown in the figure.
- AIR CLEANER CASE INSTALLATION NOTE
- AIR CLEANER COVER INSTALLATION NOTE
- Install the air cleaner cover as shown in the figure.

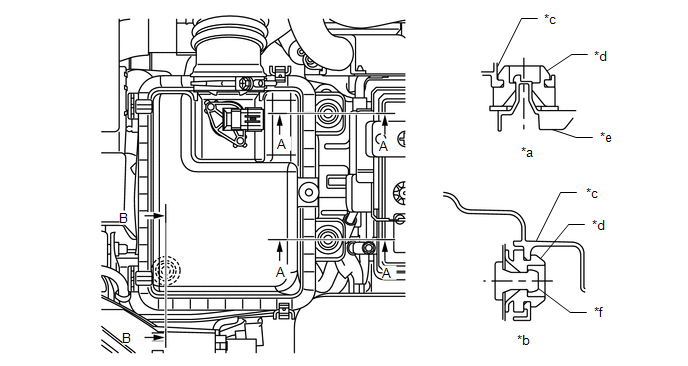

*a Air Cleaner Case *b Air Cleaner Cover *c Air Cleaner Element Lip *d Air Cleaner Element *e 1: Insert the lip of the air cleaner element without turning it. *f 2: Install the air cleaner cover with rotating it. - Secure the air cleaner cover and the air cleaner case with the clip.

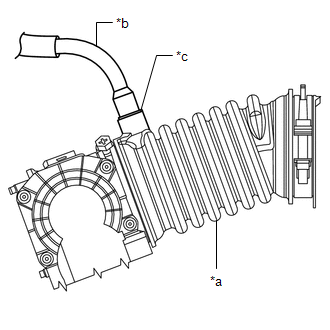

*a Air Cleaner Cover *b Clip *c Lip *d Air Cleaner Case *e Air Cleaner Element *f Install the clip and be careful not to turn the lip and overlap the air cleaner case locator and the air cleaner cover. *g Location of the Air Cleaner Case Locator *h Align the Air Cleaner Cover With the Air Cleaner Case
- Install the air cleaner cover as shown in the figure.
- AIR HOSE INSTALLATION NOTE
- Install the air hose as shown in the figure.
Throttle body side:

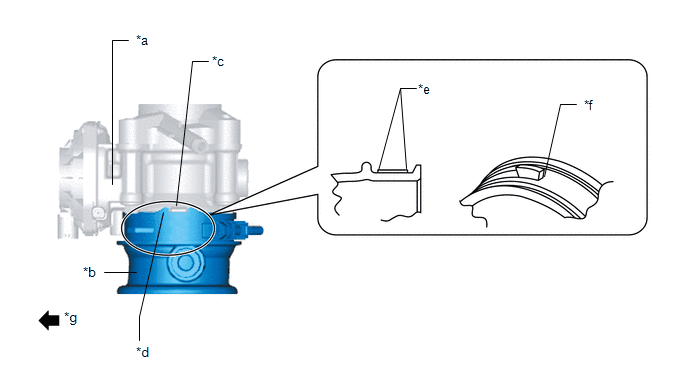

*a Throttle Body *b Air Hose *c Convex of Throttle Body *d Air Hose Recess *e Hose Clamp Installed into Concave *f Hose Clamp Installed Without Contacting Location Stopper of Air Hose *g Vehicle Front - - Air cleaner side:

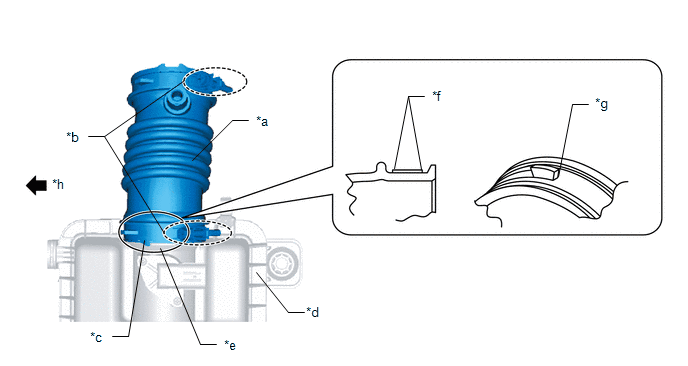

*a Air Hose *b Head of Bolts Pointed to Ward Vehicle Front *c Air Hose Recess *d Air Cleaner Cover *e Convex of Air Cleaner Cover *f Hose Clamp Installed into Concave *g Hose Clamp Installed Without Contacting Location Stopper of Air Hose *h Vehicle Front
- Install the air hose as shown in the figure.
- VENTILATION HOSE INSTALLATION NOTE
- INSTALL INTAKE MANIFOLD
- Install the intake manifold.
Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

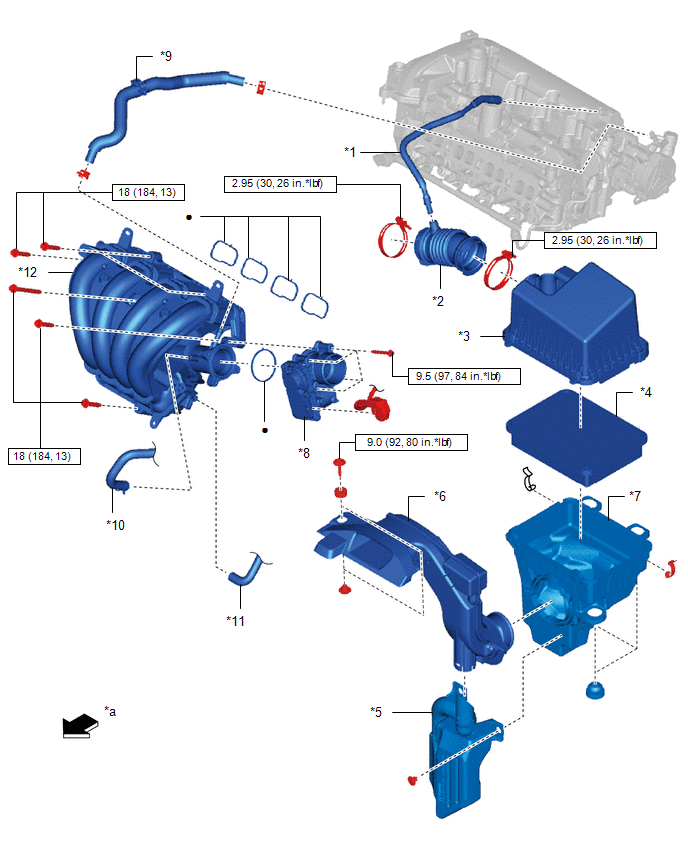

*1 Ventilation Hose *2 Air Hose *3 Air Cleaner Cover *4 Air Cleaner Element *5 Resonator *6 Fresh-air Duct *7 Air Cleaner Case *8 Throttle Body *9 Vacuum Hose *10 Evaporative Hose *11 PCV Hose *12 Intake Manifold *a Vehicle Front - - N*m (kgf*cm, ft.*lbf) : Specified torque • Non-reusable part - Install the PCV hose.
- Install the evaporative hose.
See step 1
- Install the vacuum hose.
See step 2
- Install the throttle body.
Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)
- Install the air cleaner case.
See step 3
- Install the fresh-air duct.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
- Install the resonator.
- Install the air cleaner element.
- Install the air cleaner cover.
See step 4
- Install the air hose.
See step 5
Torque: 2.95 N*m (30 kgf*cm, 26 in.*lbf)
- Install the ventilation hose.
See step 6
- Connect the negative battery cable.
Refer to INSTALLATION [07/2015 - ]
- Install the intake manifold.
