Power Window Control System - Diagnostic Codes
>>
Power Window Control System
>>
DTC B126A-13: Drivers Door Interior Lock Switch Circuit Open [07/2015 - ]
>>
Wiring Diagram
DTC B126A-13: Drivers Door Interior Lock Switch Circuit Open [07/2015 - ]: Wiring Diagram
w/o Smart Key System

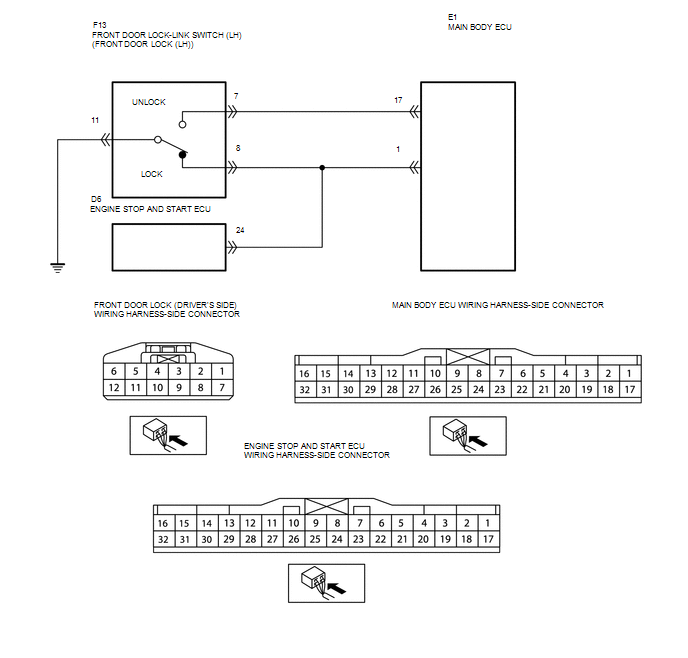

Fig 1: Front Door Lock-Link Switch (Driver Side) Wiring Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ Smart Key System
Fig 2: Front Door Lock-Link Switch (Driver Side) Wiring Diagram (W/Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
