DTC B1219-11: Interior Boot/Trunk Release Switch Circuit Short To Ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

Fig 1: Trunk Lid Opener Switch (Interior) Wiring Diagram (W/O Smart Key System)
GTY486770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

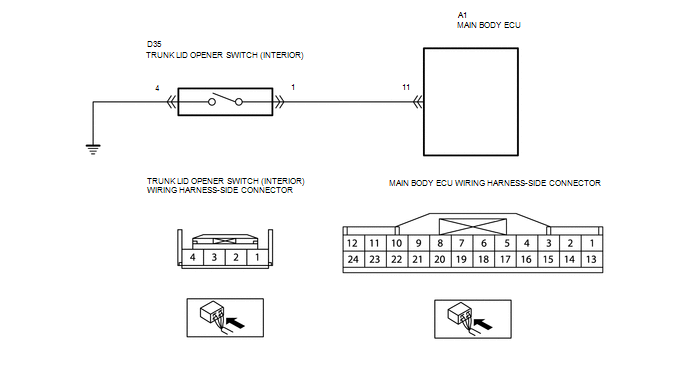

Fig 2: Trunk Lid Opener Switch (Interior) Wiring Diagram (W/Smart Key System)
GTY493899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
