DTC B1178-11: Boot/Trunk Ajar Switch Circuit Short To Ground [07/2015 - ]: Wiring Diagram

w/o Smart Key System

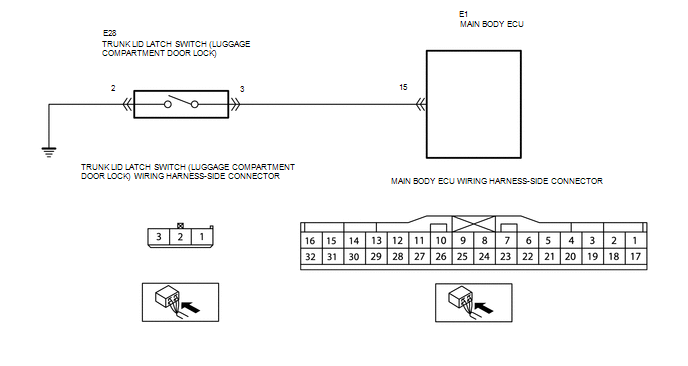

Fig 1: Trunk Lid Latch Switch Wiring Diagram (W/O Smart Key System)
GTY489108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Smart Key System

Fig 2: Trunk Lid Latch Switch Wiring Diagram (W/Smart Key System)
GTY489106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
