Components [05/2014 - ]: Illustration

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY388272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

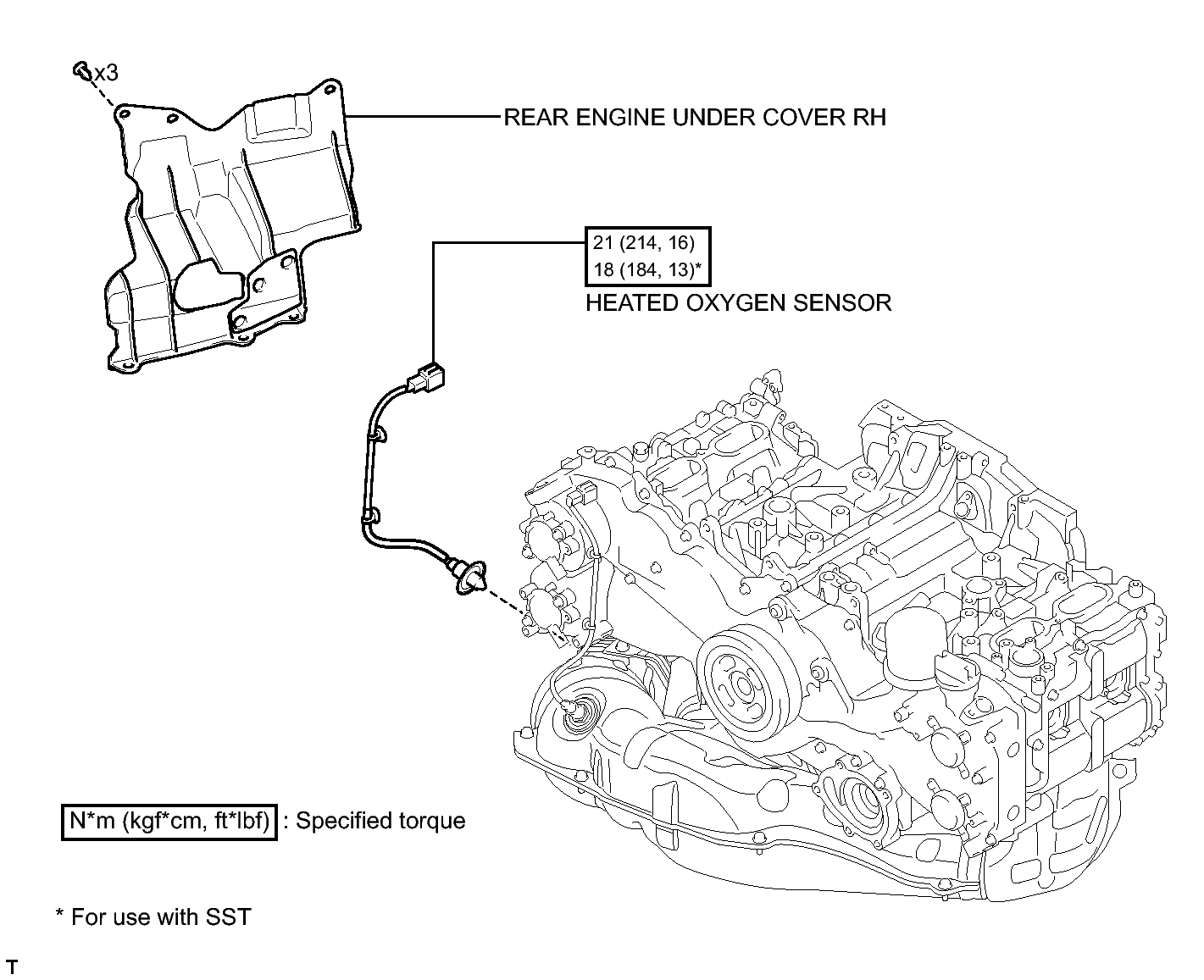

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY392056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
