Components [05/2014 - ]: Illustration

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 2)
GTY387176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

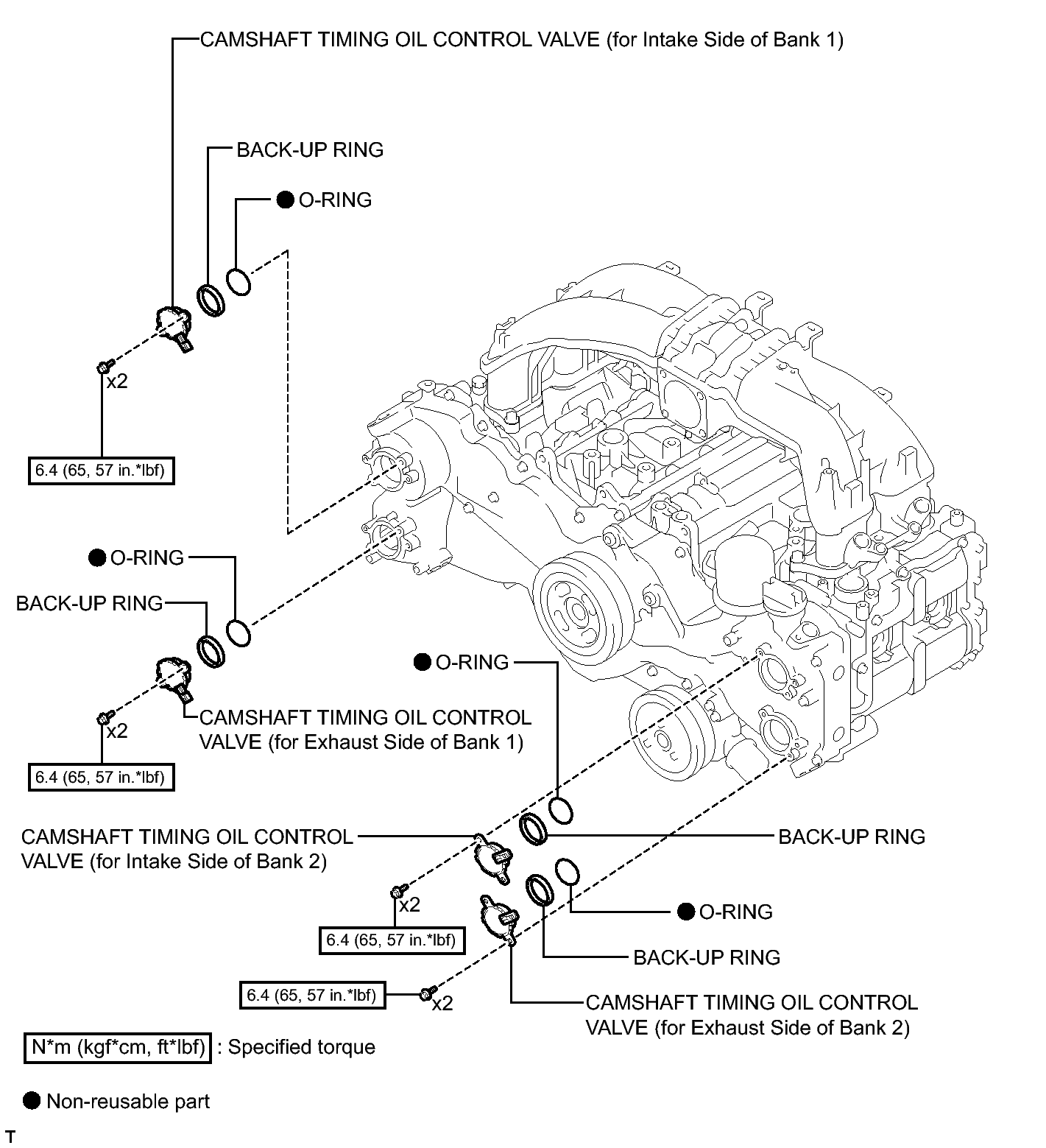

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (2 Of 2)
GTY389212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
