Operation Check [05/2014 - ]

HINT:

Before performing the window lock switch operation check, make sure that the window lock switch is off (the lock switch is not pushed in).

Fig 1: Identifying Window Lock Switch With Symbol

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the front passenger side window cannot be operated when the window lock switch of the power window regulator master switch assembly is pushed in.

   OK

   Front passenger side window is disabled.

2. Check that the front passenger side window can be operated when the window lock switch of the power window regulator master switch assembly is pushed in again.

   OK

   Front passenger side window operates normally.

1. Check that the driver side power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

2. Check that the front passenger side window operates as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch off	Front passenger side	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

1. Check that the driver side power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON	Driver side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that the front passenger side window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Ignition switch ON Window lock switch off	Front passenger side	Pulled up	UP (Closes)
   		Pushed down	DOWN (Opens)

1. Check that all the power windows can be operated with the power window regulator master switch assembly and power window regulator switch assembly after the ignition switch is turned off.

   HINT:

   If the window lock switch is on, the windows cannot be operated using the power window regulator switch assembly and power window regulator master switch assembly (remote function). Therefore, turn the window lock switch off before checking the window operation.

2. Check that the key-off operation function does not operate after the driver side door or front passenger side door is opened.

   HINT:

   When the driver side door or front passenger side door is opened during automatic window operation while the key-off operation function is on, the window stops operating.

3. Check that all the power windows cannot be operated after more than approximately 43 seconds have elapsed since the ignition switch was turned off.

1. Check the basic function.
   WARNING:

   Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

   HINT:

   The jam protection function is operative during both the auto up and manual up operations while the engine is running or the ignition switch is ON, and also 43 seconds have elapsed after the ignition switch is turned off.

   1. Fully open the window.
   2. Set a thick book wrapped with a piece of cloth near the window fully closed position.

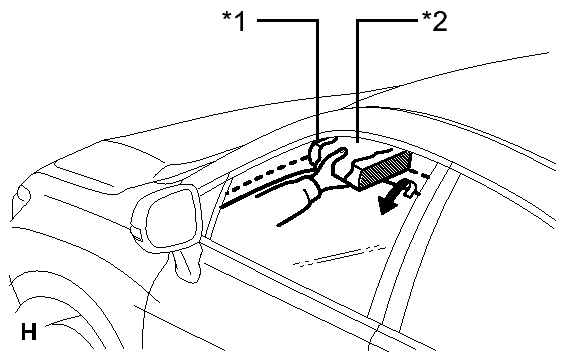

      Fig 2: View Of Using Thick Book Wrapped

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Thick Book
      *2	Cloth

   3. Operate the auto up or manual up function to check that the power window stops and goes down after the thick book is caught between the window and door frame, and stops when the opening reaches approximately 200 mm (7.87 in.) or until approximately 5 seconds elapse.

      HINT:

      The power window moves down approximately 125 mm (4.93 in.). However, when the opening does not reach 200 mm (7.87 in.), the power window continues to go down until the opening reaches 200 mm (7.87 in.) or until approximately 5 seconds elapse.

   4. While the power window is moving down, check that the door glass cannot be raised when the power window regulator master switch assembly is used.

1. Check the LED illumination (power window regulator master switch assembly).
   1. Check that the LED located on the power window regulator master switch assembly illuminates when the ignition switch is turned to ON.
