System Diagram [05/2014 - ]

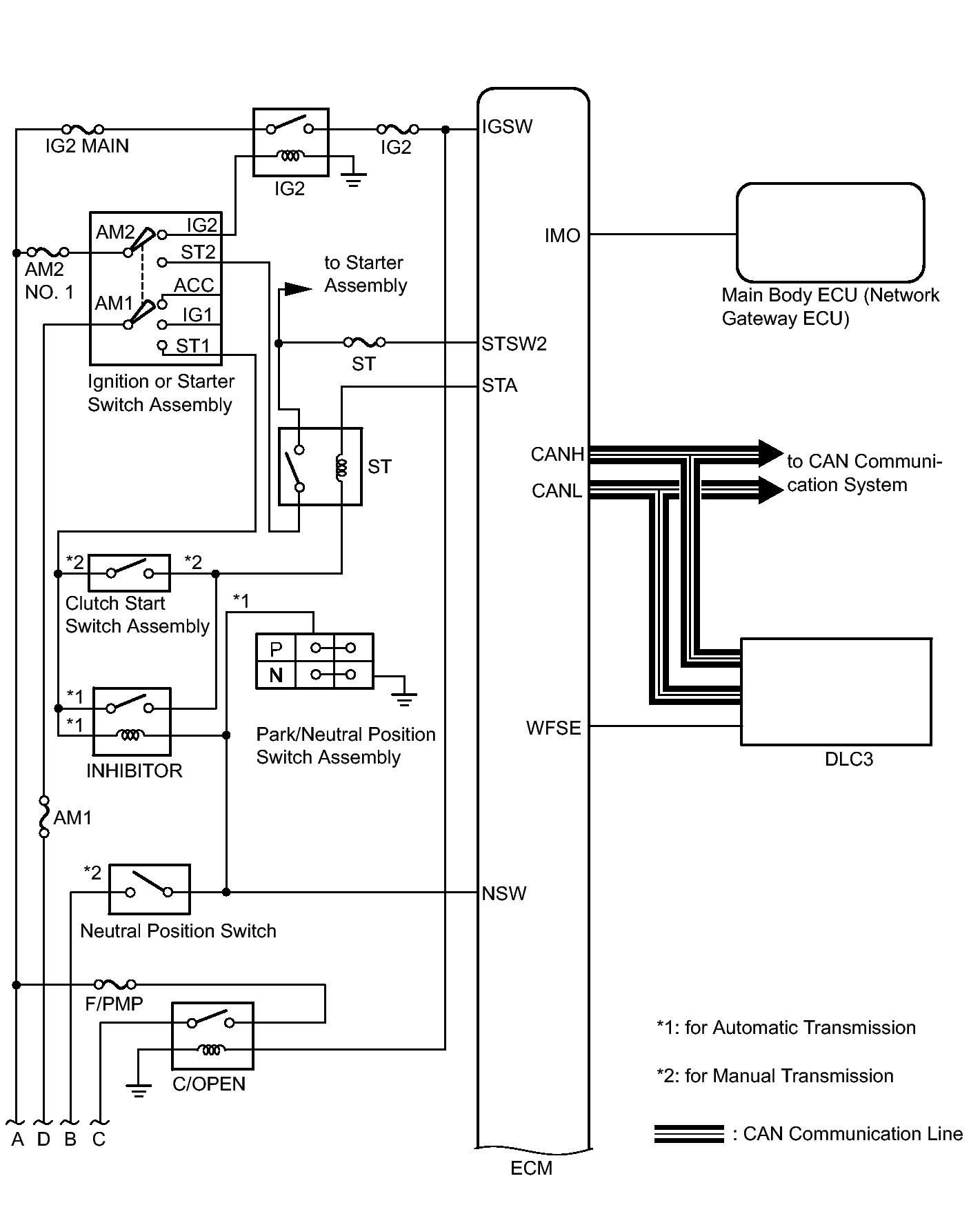

Fig 1: Engine Control System Diagram (1 Of 6)

GTY471651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

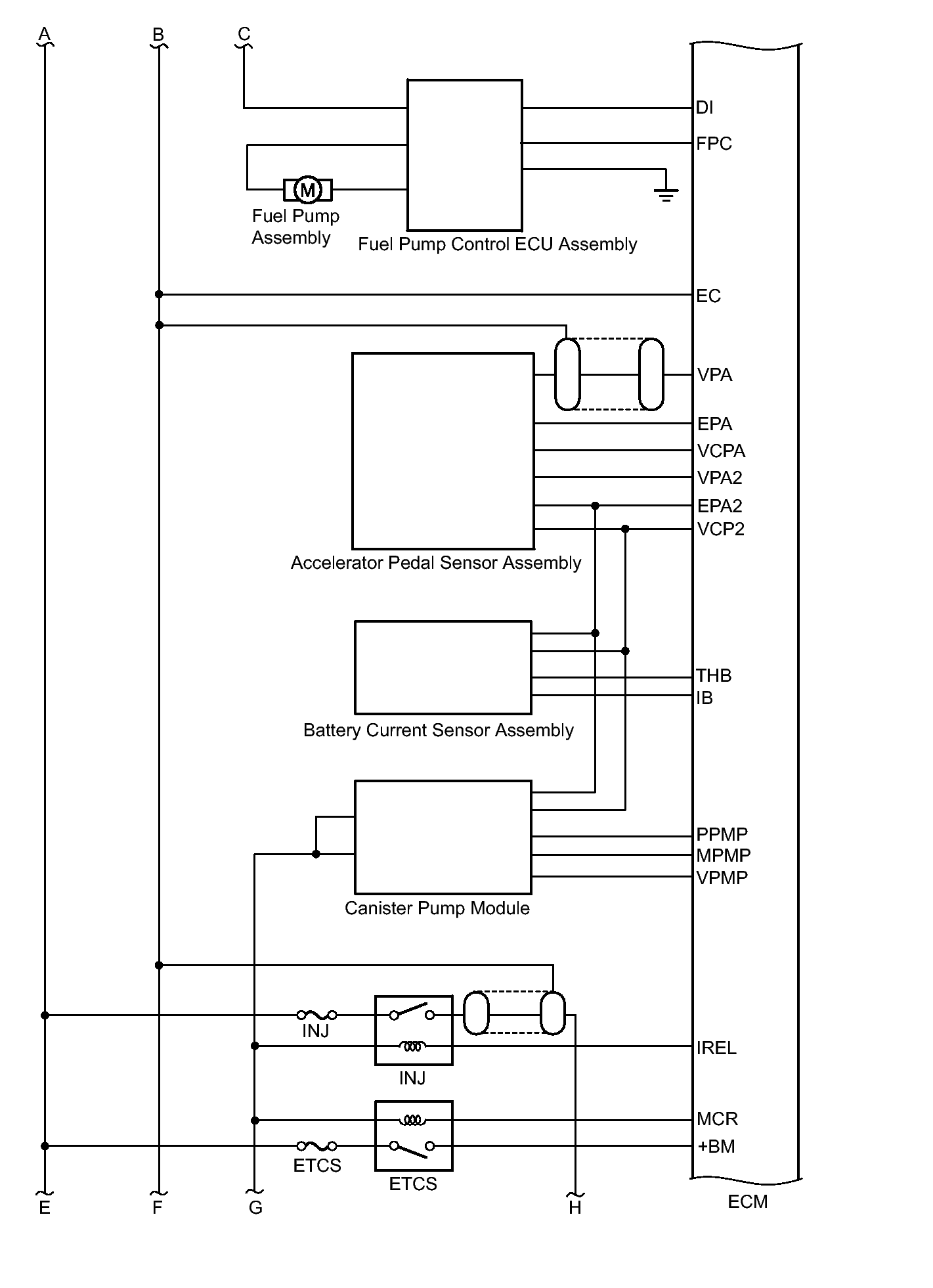

Fig 2: Engine Control System Diagram (2 Of 6)

GTY391002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

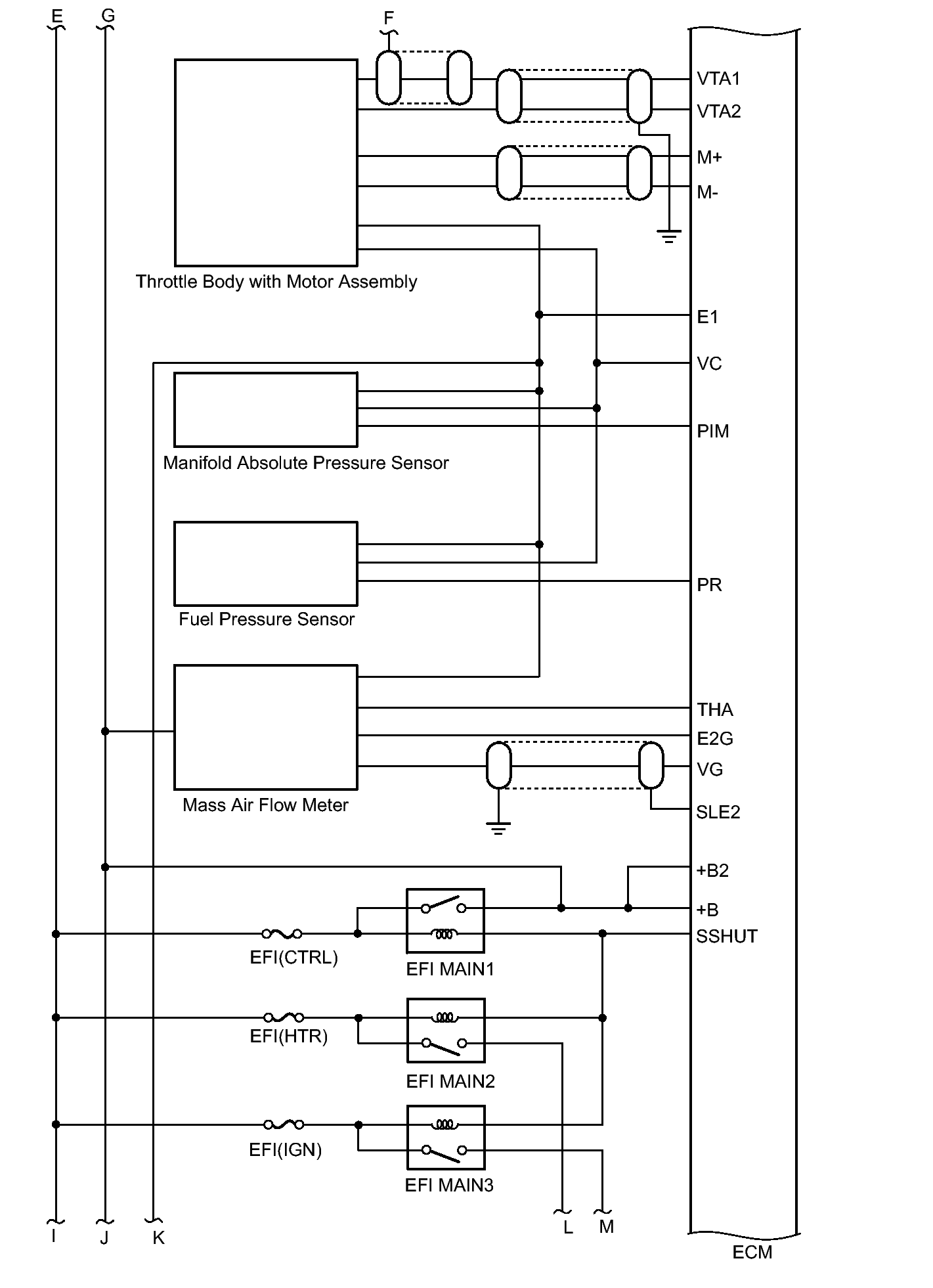

Fig 3: Engine Control System Diagram (3 Of 6)

GTY422257

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

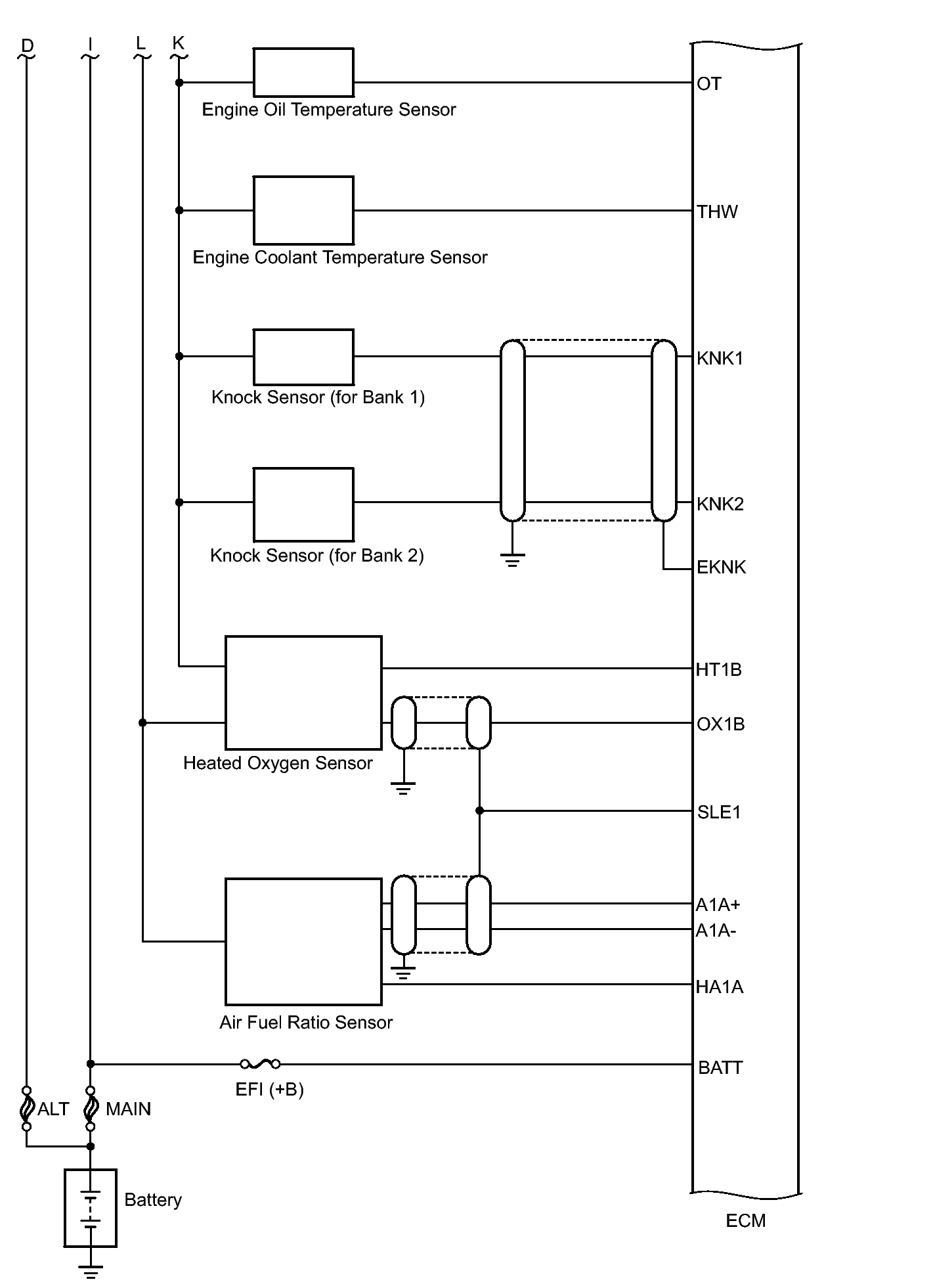

Fig 4: Engine Control System Diagram (4 Of 6)

GTY471410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

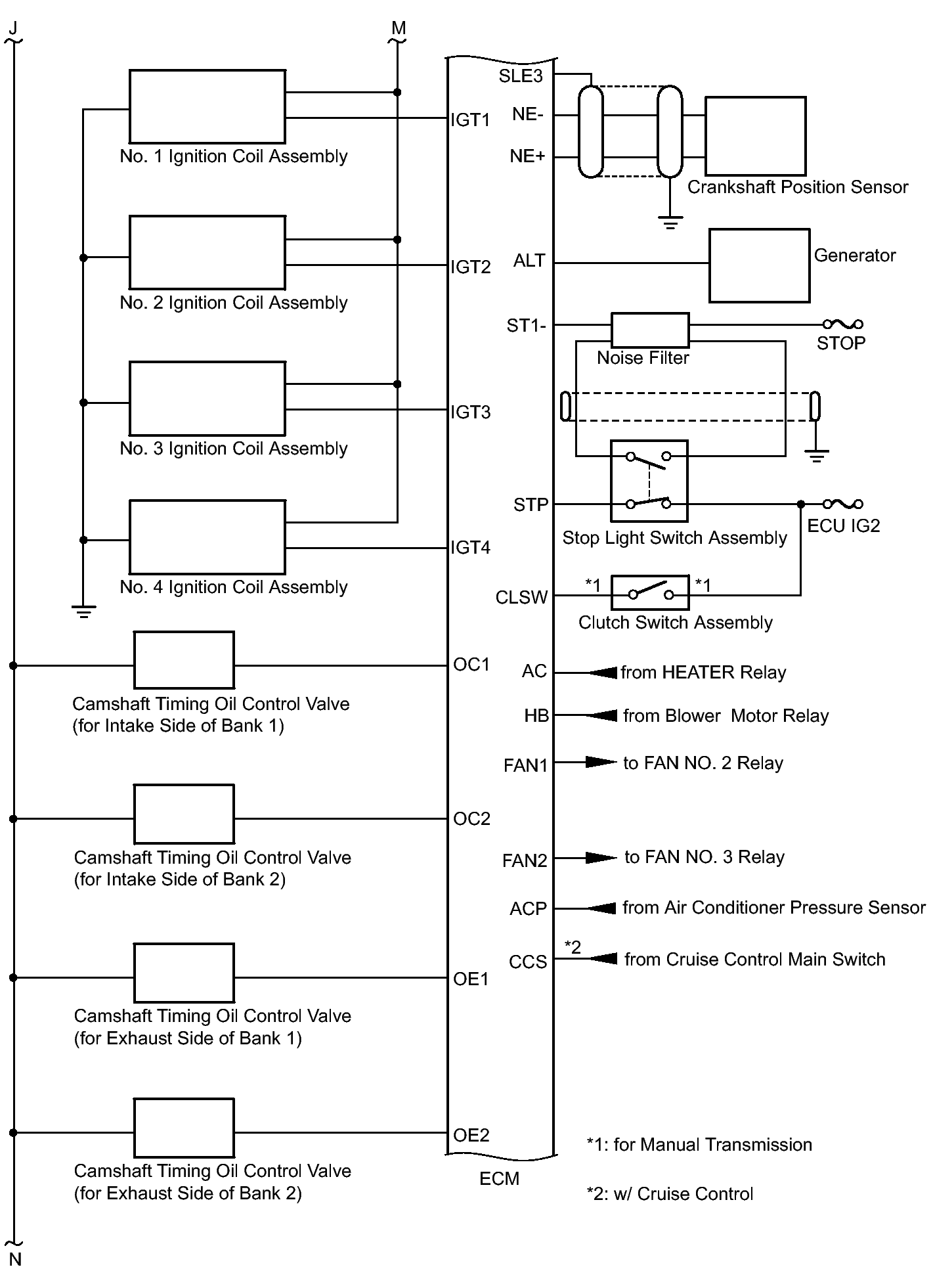

Fig 5: Engine Control System Diagram (5 Of 6)

GTY471937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

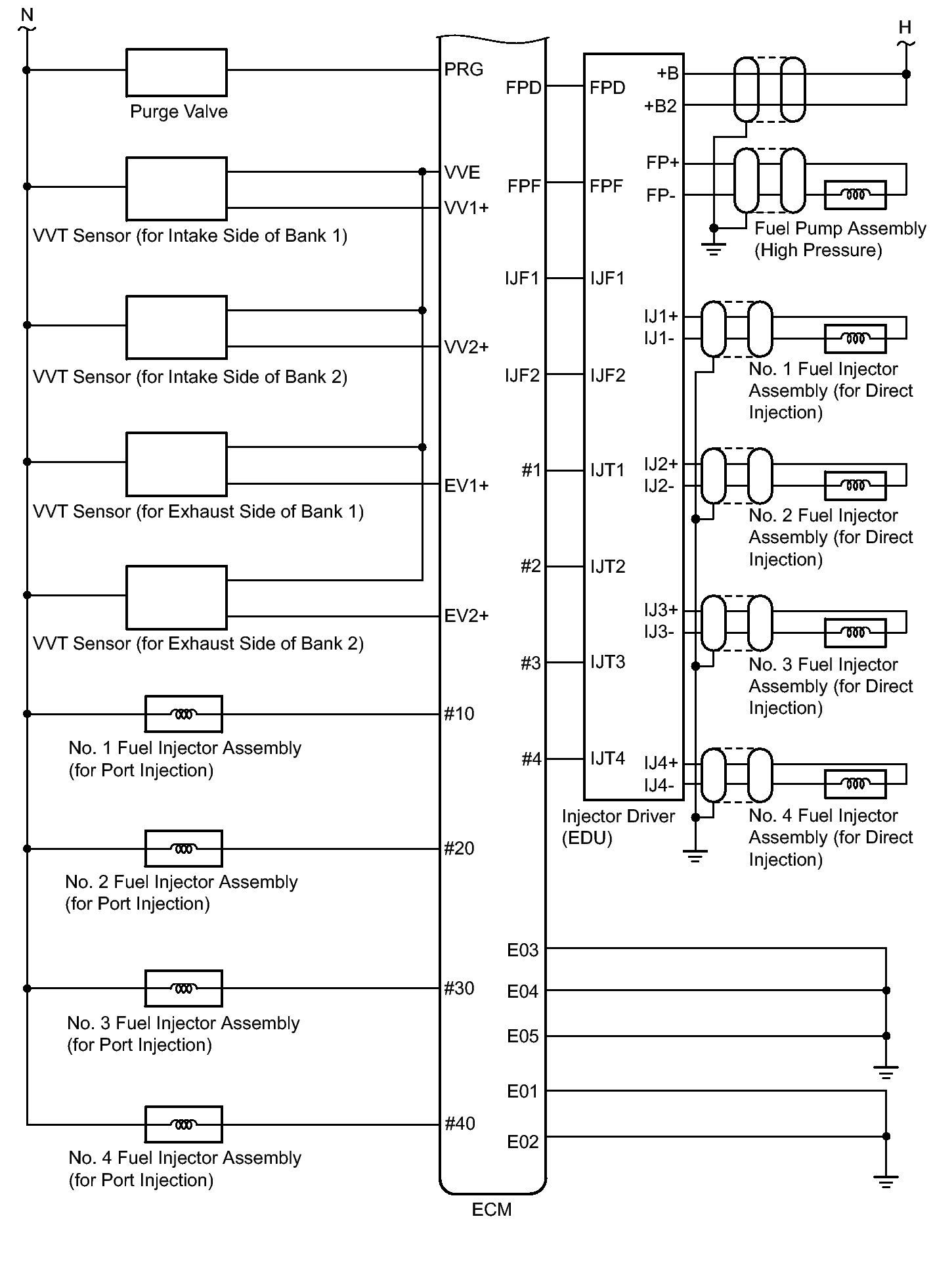

Fig 6: Engine Control System Diagram (6 Of 6)

GTY471328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
