Starter Signal Circuit [05/2013 - 01/2014]: Wiring Diagram

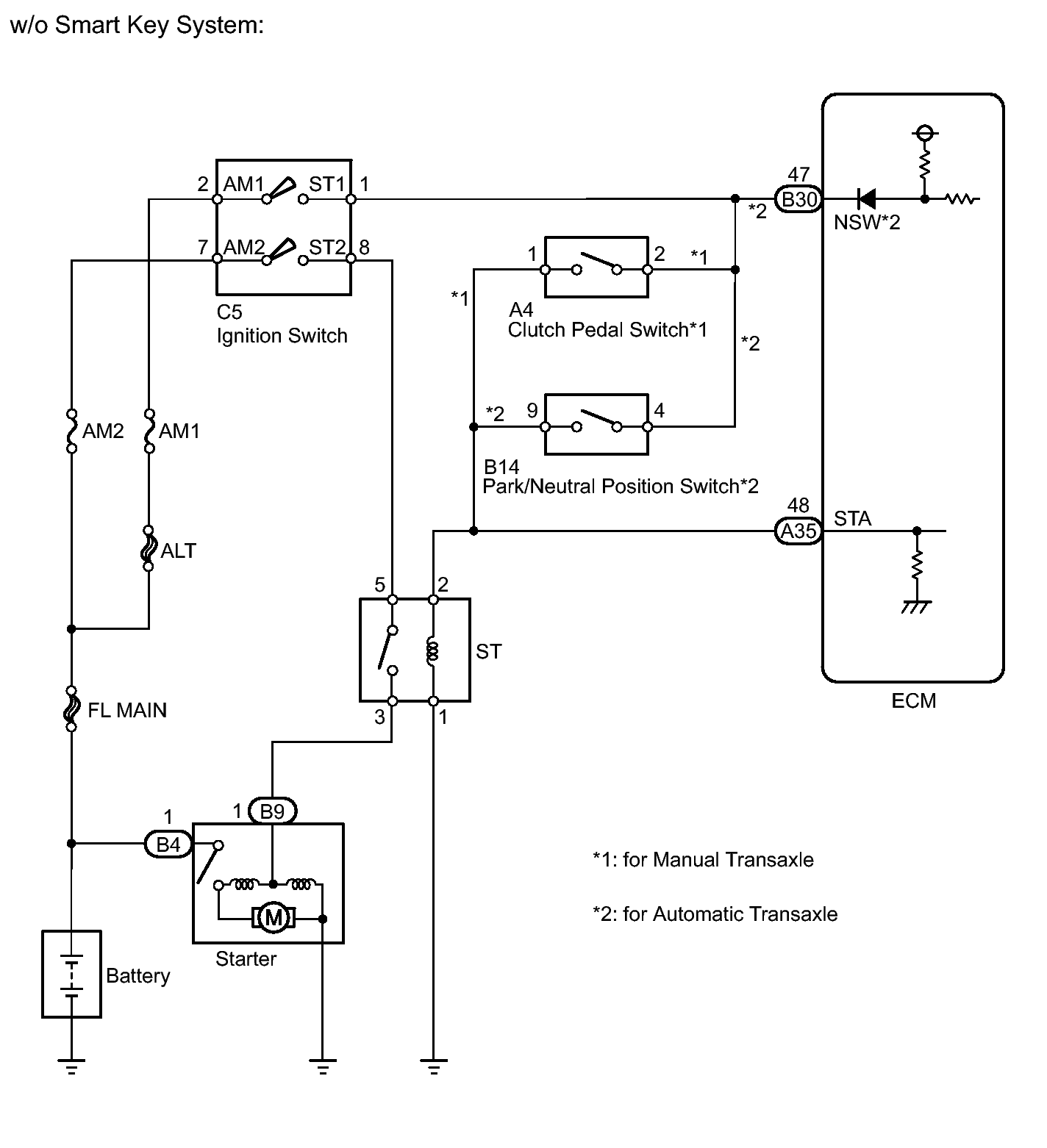

Fig 1: Starting System - Wiring Diagram (W/O Smart Key)
GTY311031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

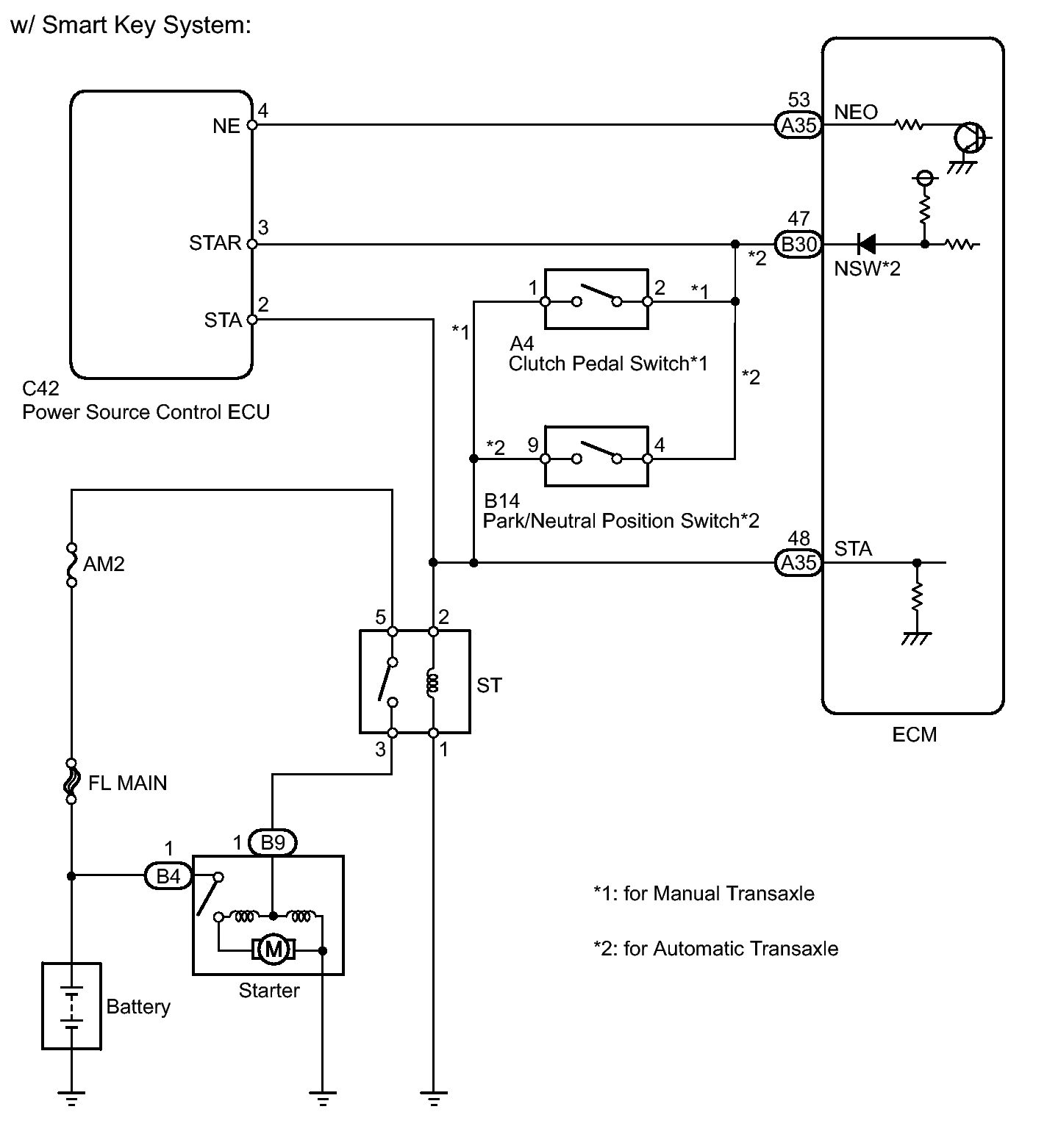

Fig 2: Starter Signal - Wiring Diagram (W/Smart Key)
GTY346719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
