Fuel Injector Circuit [05/2013 - 01/2014]: Wiring Diagram

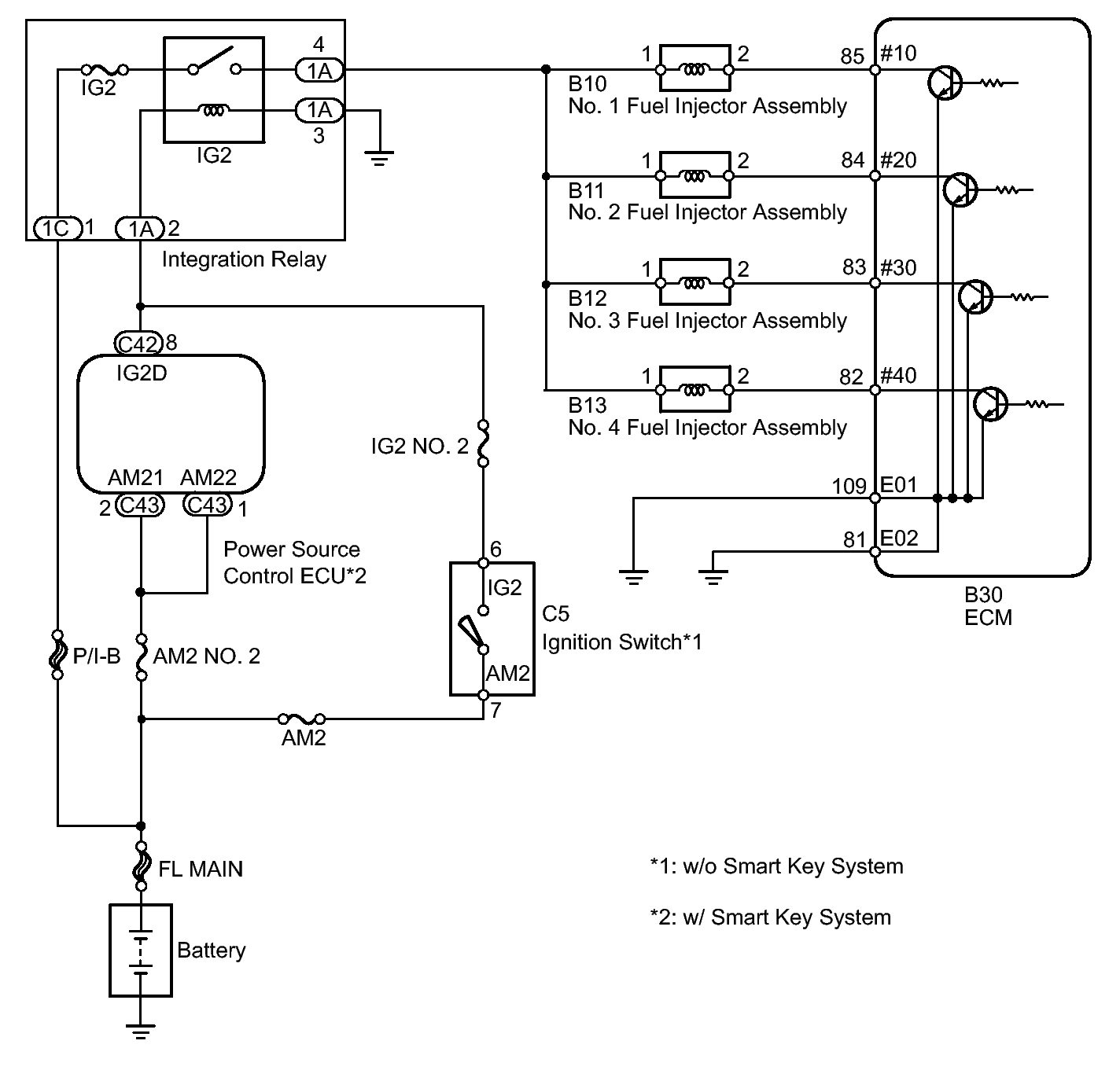

Fig 1: Identifying Fuel Injector Circuit Diagram

GTY345464

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
