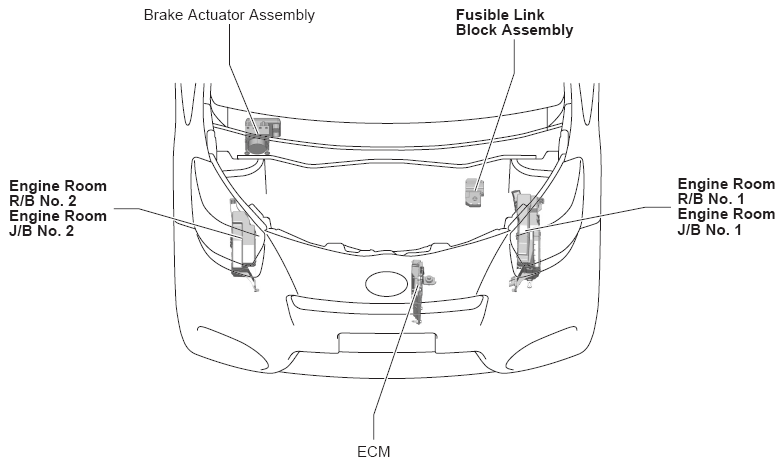

Fusible Link Block Assembly - Near the Battery: Notes

For additional information, refer to Figure.

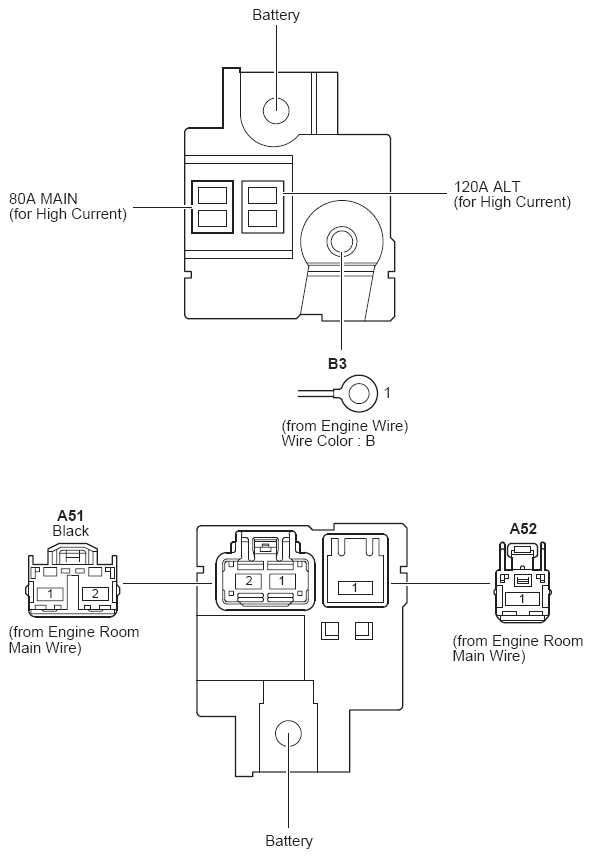

Fig 1: Fusible Link Block Fuse Identification
G08774613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FUSIBLE LINK BLOCK FUSE IDENTIFICATION LEGEND

Fuse System
80A MAIN Charging
120A ALT Automatic Light Control and Light Auto Turn Off System
Charging
CVT, Engine Control and Shift Indicator
Illumination and Taillight
