Components [07/2013 - ]: Illustration

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY386948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

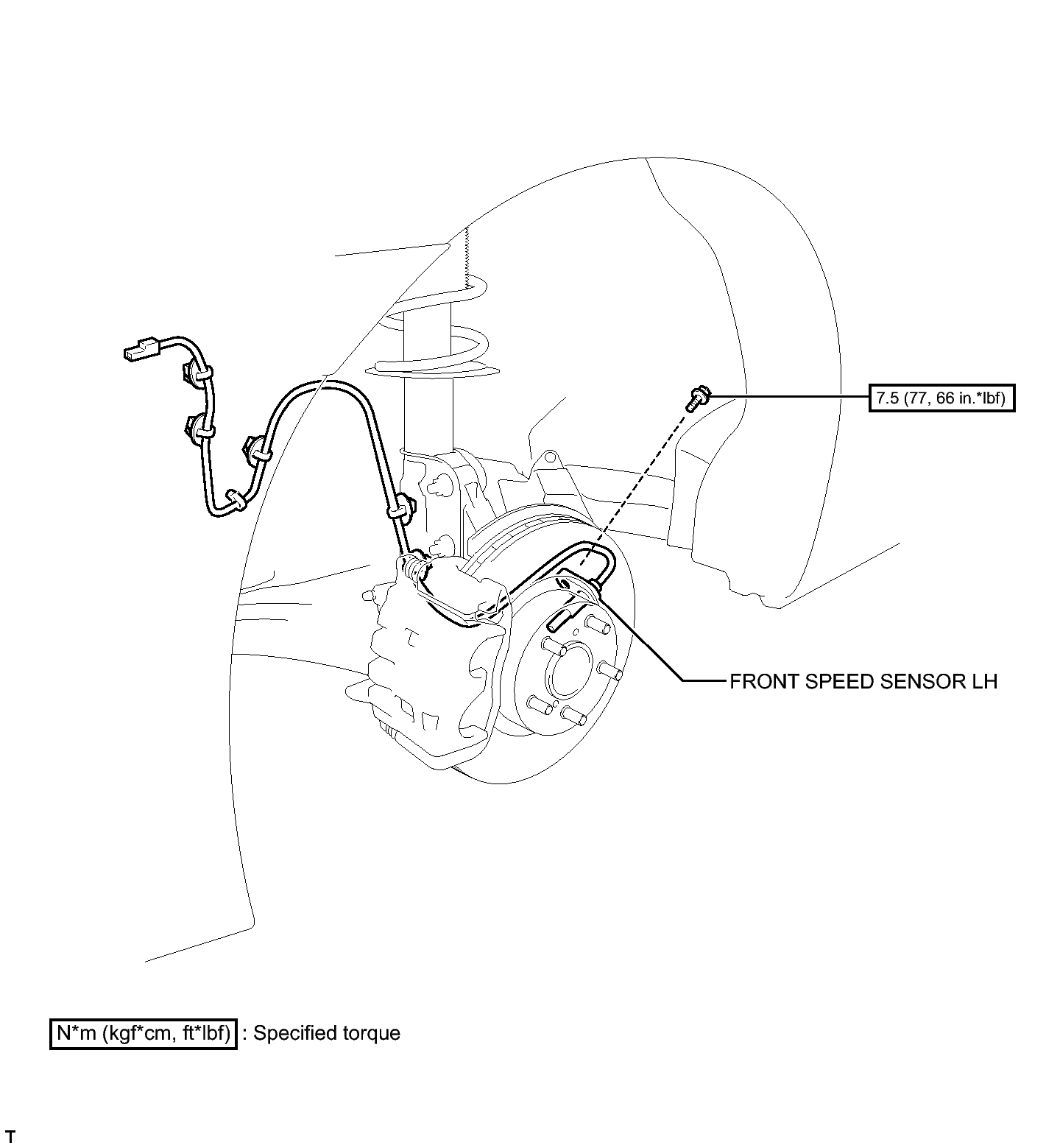

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY391453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
