Accelerator Pedal Rod: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY

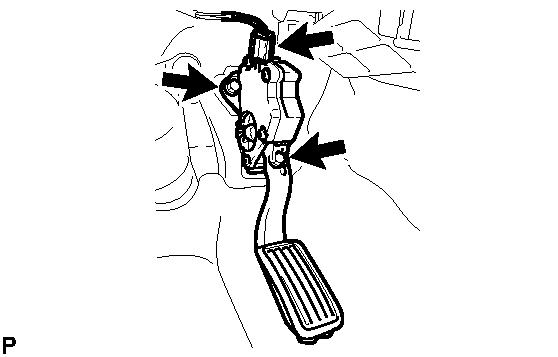

    Fig 1: Identifying Accelerator Pedal Bolts & Accelerator Pedal Connector
    GTY160848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the accelerator pedal connector.
    2. Remove the 2 bolts and accelerator pedal.
      NOTE:
      • Do not drop or strike the accelerator pedal.
      • Do not disassemble the accelerator pedal.
