Crankshaft Position Sensor: Inspection: Inspection

INSPECT CRANKSHAFT POSITION SENSOR

Measure the resistance according to the value(s) in the table below.

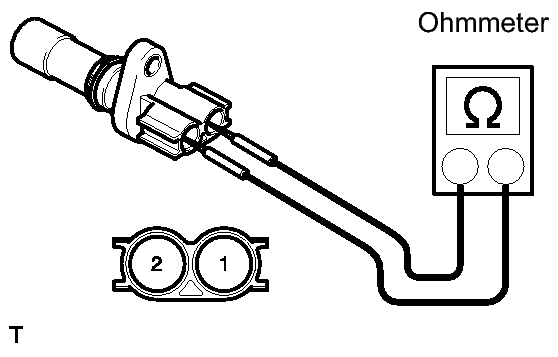

Fig 1: Measuring Resistance Between Crankshaft Position Sensor Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	20°C	1850 to 2450 Ω

HINT:

In the table above, the terms Cold and Hot refer to the temperature of the coils. Cold means approximately -10 to 50 °C (14 to 122 °F). Hot means approximately 50 to 100 °C (122 to 212 °F).

If the resistance is not as specified, replace the crankshaft position sensor.
