Starting System (Service Information): Starter: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE ENGINE UNDER COVER LH
  3. REMOVE ENGINE UNDER COVER RH
  4. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Disengage the claw by pulling it outward and remove the flywheel housing side cover.

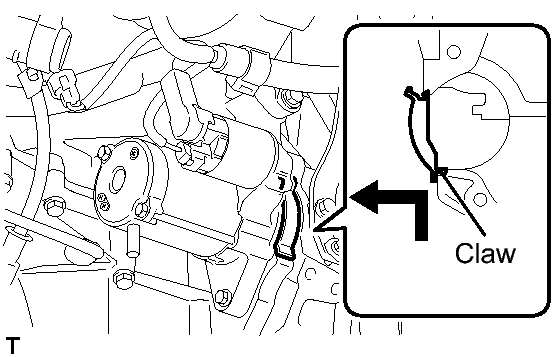

      Fig 1: Identifying Flywheel Housing Side Cover Claw
      GTY160789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STARTER ASSEMBLY
    1. Remove the terminal cap.

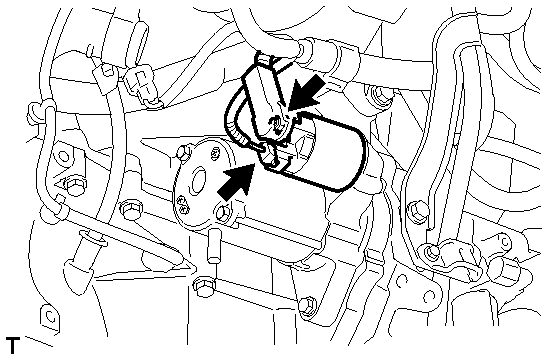

      Fig 2: Identifying Starter Assembly Harness Connectors
      GTY160790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect terminal 30.
    3. Disconnect the connector.
    4. Remove the 2 bolts and remove the starter assembly.

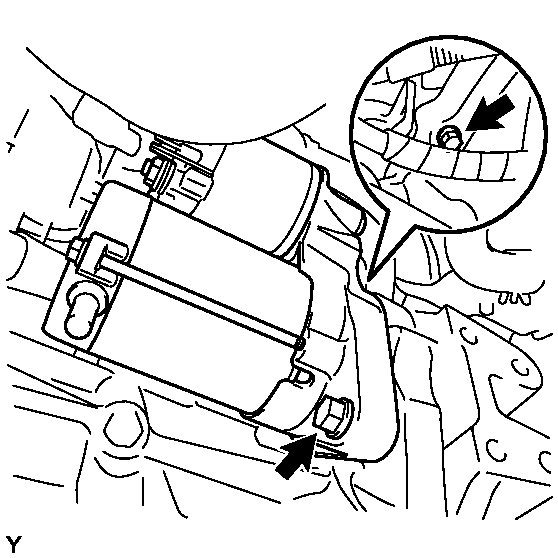

      Fig 3: Identifying Starter Assembly Bolts
      GTY160748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
