Rear Wiper and Washer: Notes

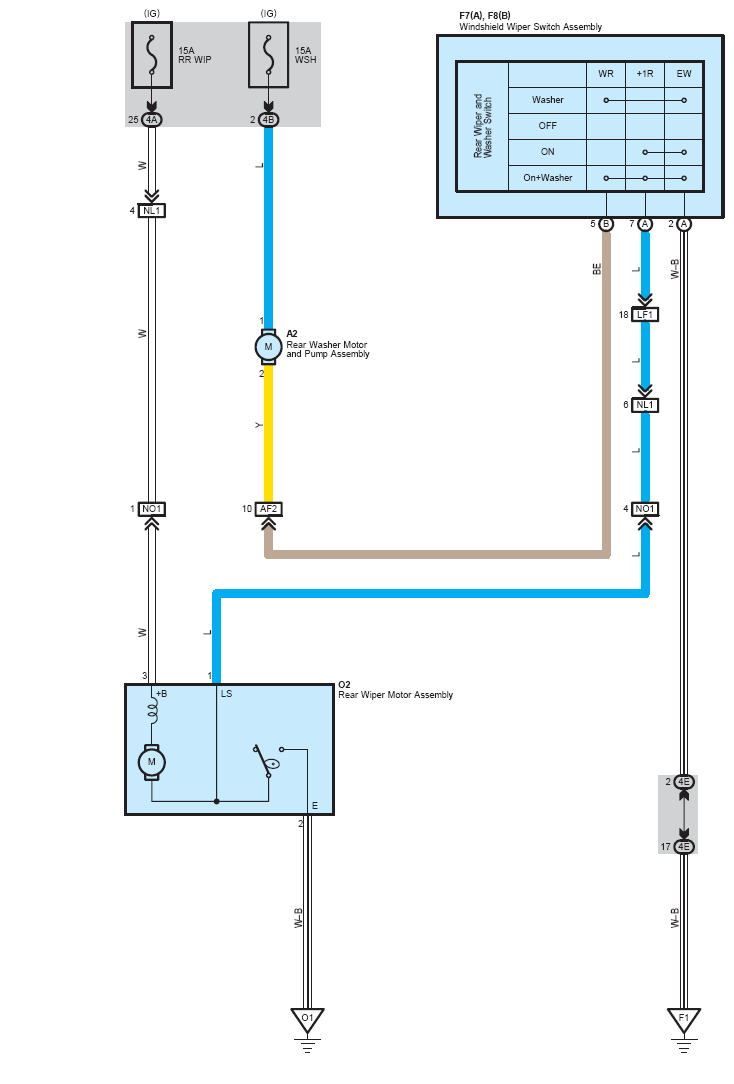

Fig 1: Rear Wiper And Washer - Circuit Diagram

G08777362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
