Mirror Heater and Rear Window Defogger: Notes

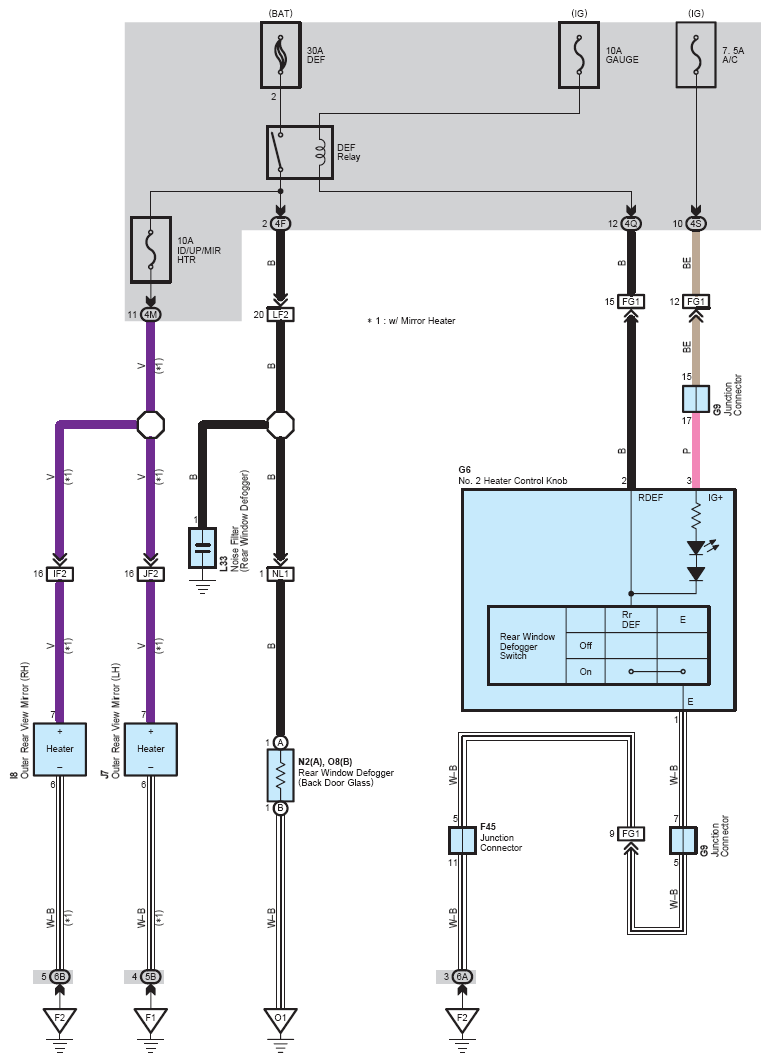

Fig 1: Mirror Heater And Rear Window Defogger - Circuit Diagram

G08777366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
