Illumination and Taillight: Notes

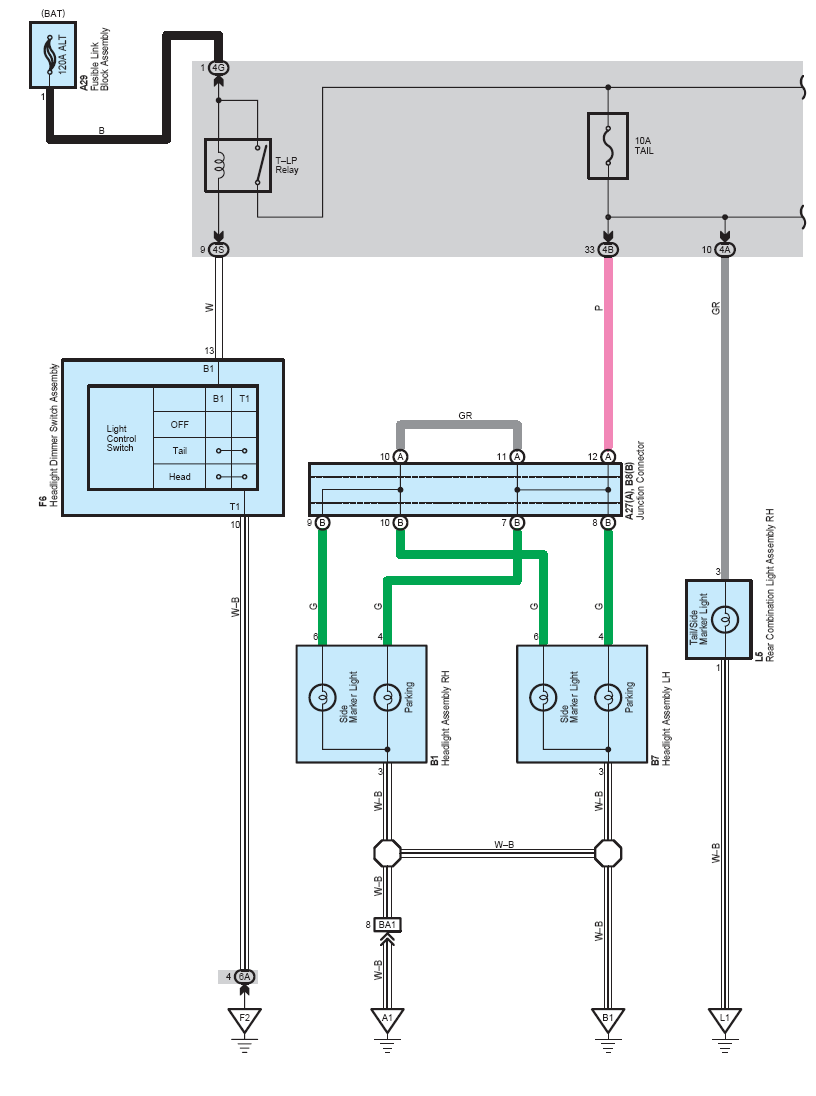

Fig 1: Illumination And Taillight - Circuit Diagram (1 Of 4)
G08777309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

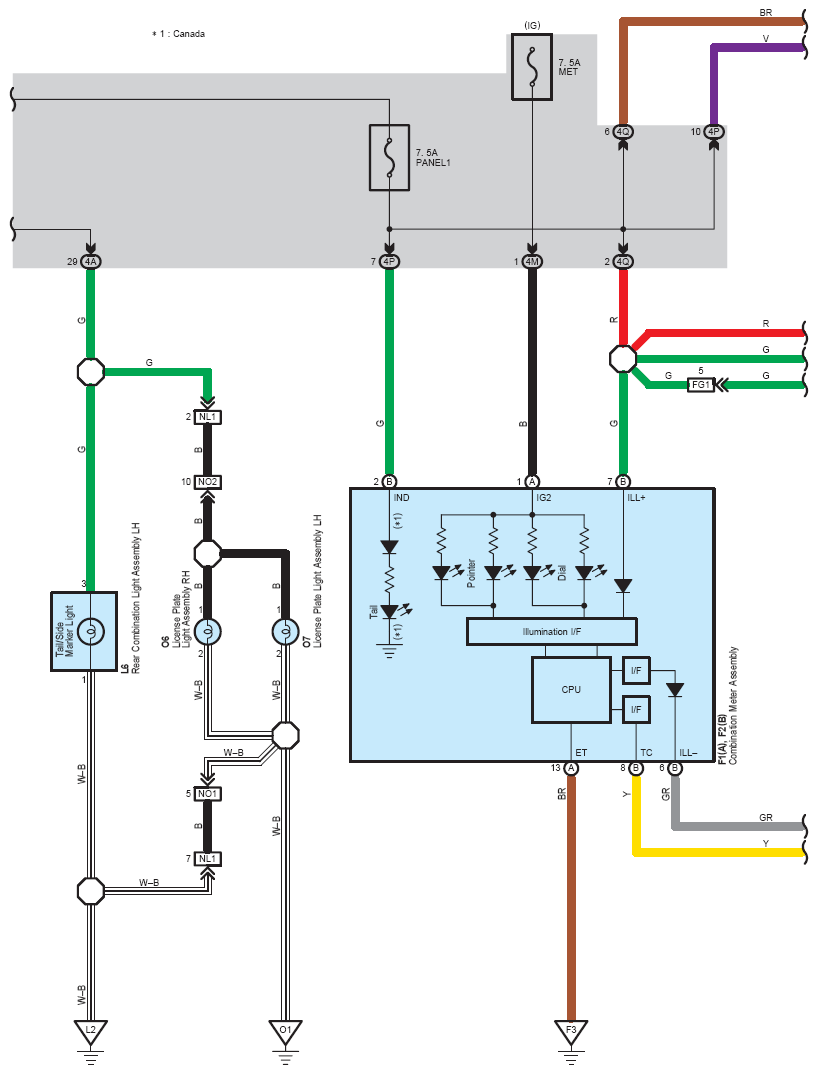

Fig 2: Illumination And Taillight - Circuit Diagram (2 Of 4)
G08777310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

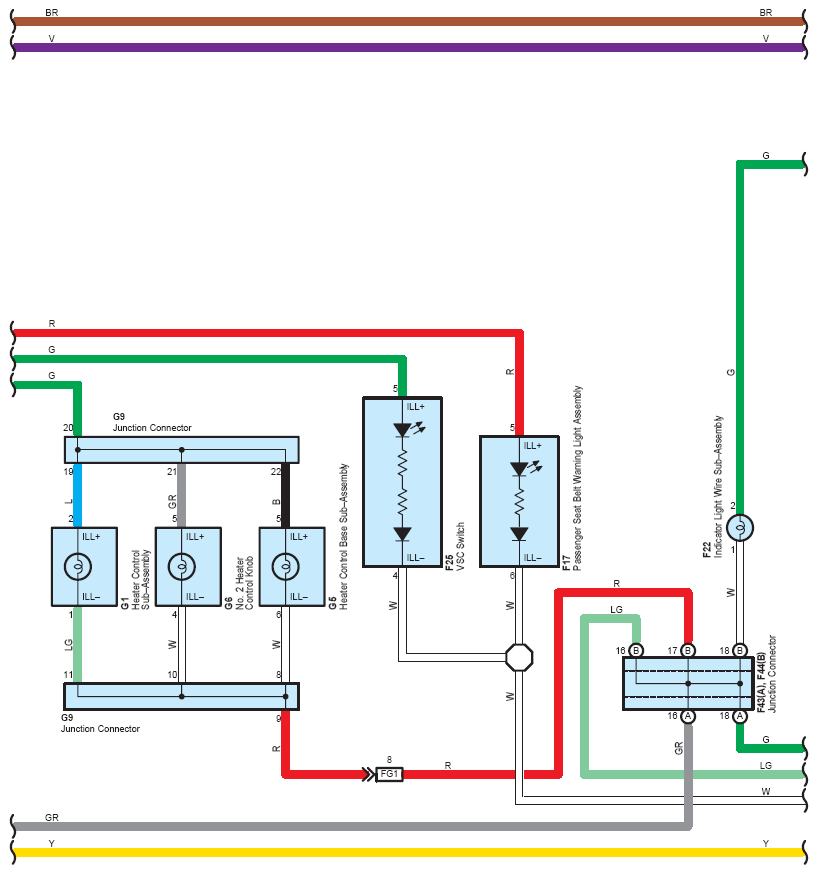

Fig 3: Illumination And Taillight - Circuit Diagram (3 Of 4)
G08777311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

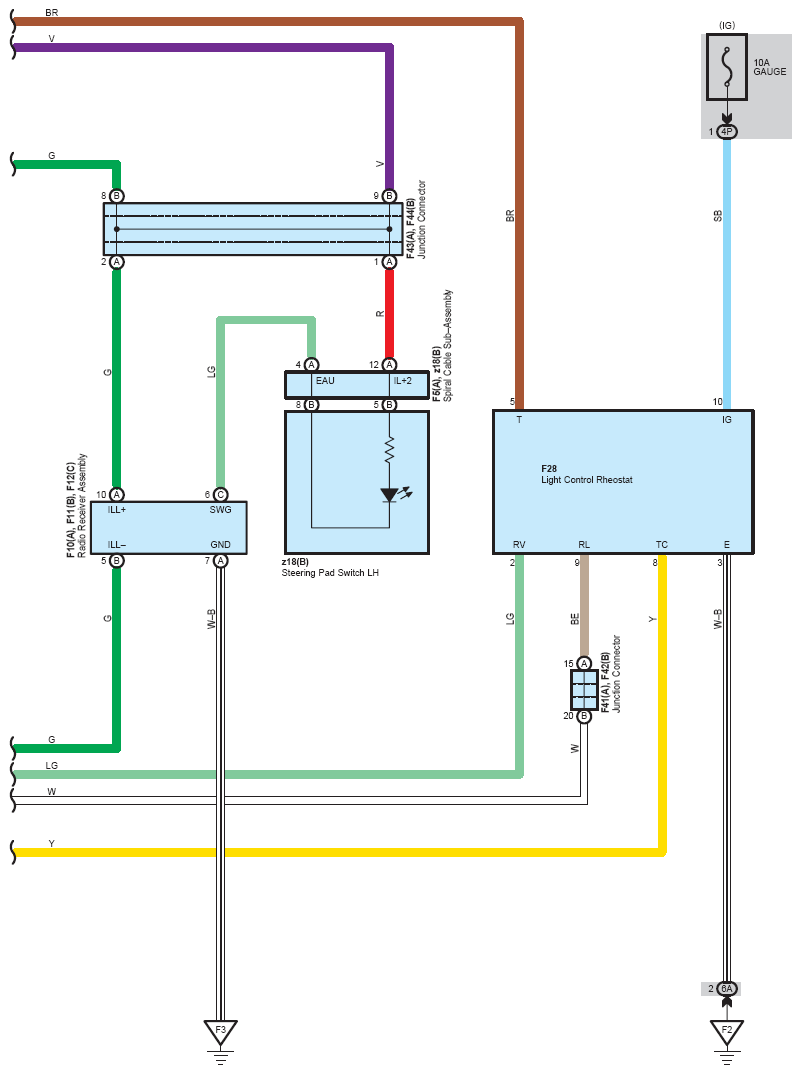

Fig 4: Illumination And Taillight - Circuit Diagram (4 Of 4)
G08777312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
