DTC B1771: Passenger Side Buckle Switch Circuit Malfunction: Procedure

  1. CHECK FOR DTC
    1. Turn the ignition switch ON, and wait for at least 60 seconds.
    2. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .

      HINT:

      First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor.

    3. Turn the ignition switch off.
    4. Turn the ignition switch ON, and wait for at least 60 seconds.
    5. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1771 is not output.

      HINT:

      Codes other than DTC B1771 may be output at this time, but they are not related to this check.

    NG → See step   2

    OK → See step   11

  2. CHECK CONNECTION OF CONNECTOR
    1. Turn the ignition switch off.
    2. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the occupant classification ECU and the front seat inner belt RH.

      OK

      Connectors are properly connected.

    NG → CONNECT CONNECTOR

    OK: Go to next step

  3. CHECK CONNECTOR
    1. Disconnect the connectors from the occupant classification ECU and the front seat inner belt RH.
    2. Check that the connectors (on the occupant classification ECU side and passenger side buckle switch side) are not damaged. Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE .

      OK

      Connectors are not deformed or damaged.

    NG → REPLACE FRONT SEAT WIRE RH

    OK: Go to next step

  4. CHECK FRONT SEAT WIRE RH

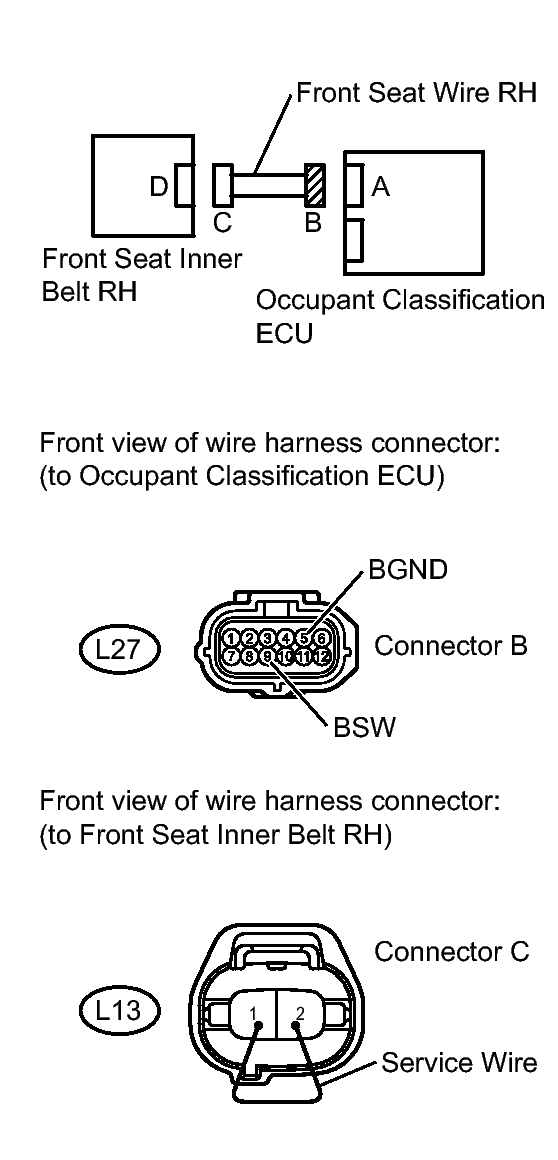

    Fig 1: Measuring Voltage Of L27 & L13 Connectors
    GTY163546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
    2. Turn the ignition switch ON, and wait for at least 60 seconds.
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      L27-9 (BSW) - Body ground Ignition switch ON Below 1 V
      L27-5 (BGND) - Body ground
    4. Turn the ignition switch off.
    5. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
    6. Using a service wire, connect terminals 1 (RBE-) and 2 (RBE+) of connector C.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector.

    7. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      L27-9 (BSW) - L27-5 (BGND) Always Below 1 Ω
    8. Disconnect the service wire from connector C.
    9. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      L27-9 (BSW) - Body ground Always 1 MΩ or higher
      L27-5 (BGND) - Body ground
      L27-9 (BSW) - L27-5 (BGND)

    NG → REPLACE FRONT SEAT WIRE RH

    OK: Go to next step

  5. CHECK FOR DTC
    1. Connect the connectors to the occupant classification ECU and the front seat inner belt RH.
    2. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
    3. Turn the ignition switch ON, and wait for at least 60 seconds.
    4. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .

      HINT:

      First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor.

    5. Turn the ignition switch off.
    6. Turn the ignition switch ON, and wait for at least 60 seconds.
    7. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1771 is not output.

      HINT:

      Codes other than DTC B1771 may be output at this time, but they are not related to this check.

    NG → See step   6

    OK → See step   12

  6. REPLACE FRONT SEAT INNER BELT ASSEMBLY RH
    1. Turn the ignition switch off.
    2. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
    3. Replace the front seat inner belt RH. Refer to REMOVAL .

      HINT:

      Perform the inspection using parts from a normal vehicle when possible.

    4. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

    NEXT: Go to next step

  7. CHECK FOR DTC
    1. Turn the ignition switch ON, and wait for at least 60 seconds.
    2. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .

      HINT:

      First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor.

    3. Turn the ignition switch off.
    4. Turn the ignition switch ON, and wait for at least 60 seconds.
    5. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1771 is not output.

      HINT:

      Codes other than DTC B1771 may be output at this time, but they are not related to this check.

    NG → See step   8

    OK → END

  8. REPLACE OCCUPANT CLASSIFICATION ECU
    1. Turn the ignition switch off.
    2. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
    3. Replace the occupant classification ECU. Refer to REMOVAL .

      HINT:

      Perform the inspection using parts from a normal vehicle when possible.

    4. Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
    5. Turn the ignition switch ON, and wait for at least 60 seconds.
    6. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .

      HINT:

      If the DTCs are not cleared at this time, past DTCs will remain.

    NEXT: Go to next step

  9. PERFORM ZERO POINT CALIBRATION
    1. Connect a Techstream to the DLC3.
    2. Turn the ignition switch ON, and wait for at least 60 seconds.
    3. Using the Techstream, perform the zero point calibration. Refer to INITIALIZATION .

    NEXT: Go to next step

  10. PERFORM SENSITIVITY CHECK
    1. Using a Techstream, perform the sensitivity check. Refer to INITIALIZATION .

      Standard range

      27 to 33 kg (59.5 to 72.8 lb)

    NEXT → END

  11. USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM
  12. USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM
