On-Vehicle Inspection

  1. INSPECT INTAKE SYSTEM
    1. Check that there is no air suction at the points shown in the illustration.

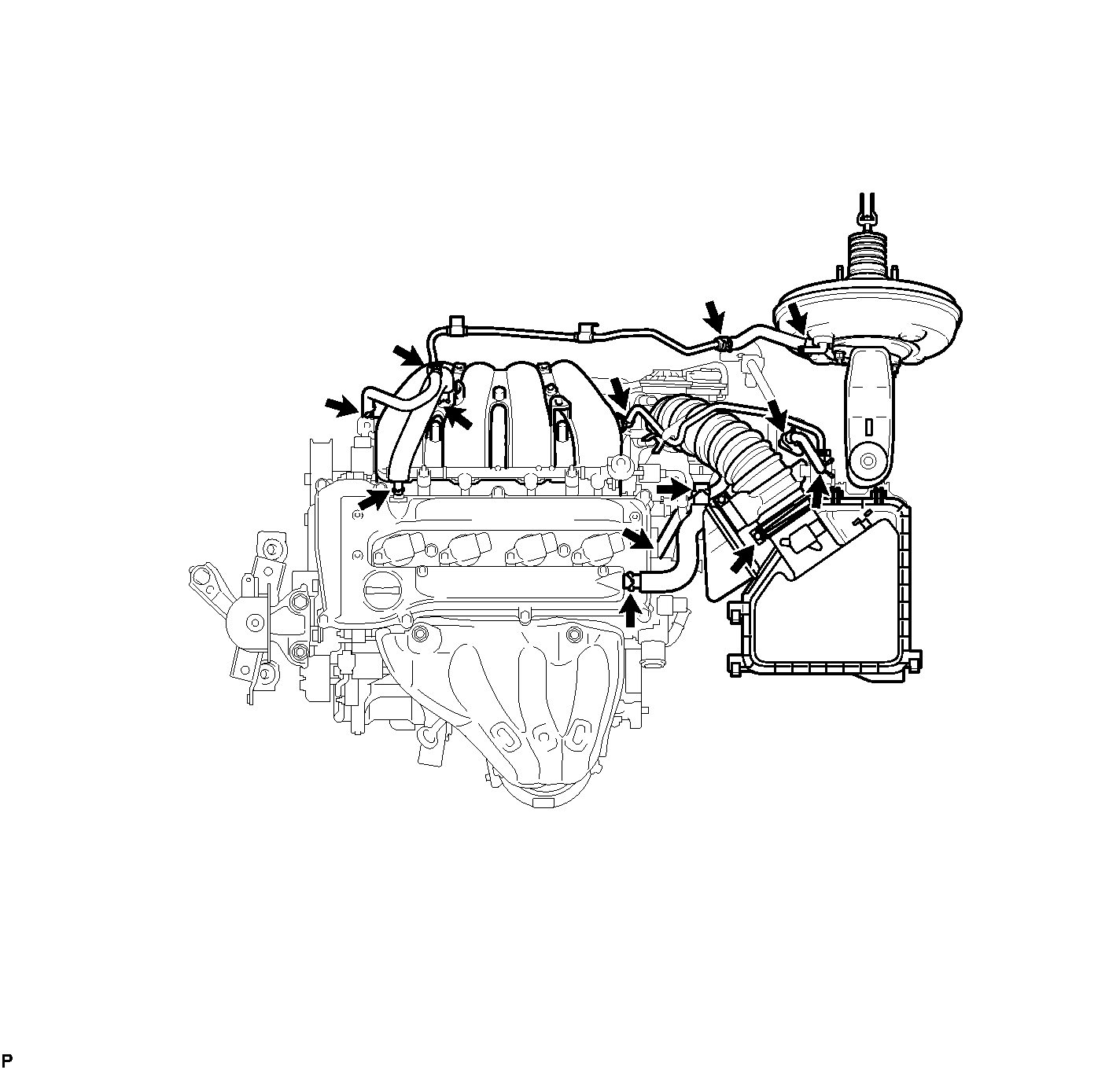

      Fig 1: Identifying Engine Intake System Inspection Points
      GTY313730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
